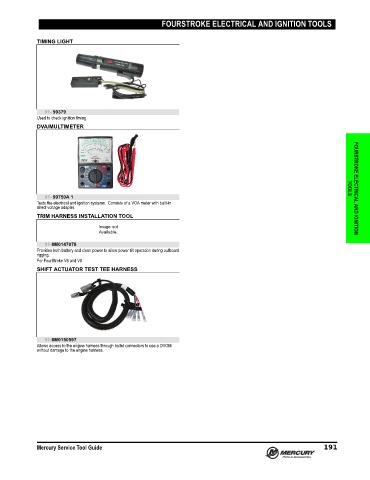

P. 198

FOURSTROKE ELECTRICAL AND IGNITION TOOLS


             TIMING LIGHT












                91- 99379
             Used to check ignition timing.
             DVA/MULTIMETER












                91- 99750A 1                                                                                        TOOLS  FOURSTROKE ELECTRICAL AND IGNITION
             Tests the electrical and ignition systems.  Consists of a VOA meter with built‑in
             direct voltage adapter.
             TRIM HARNESS INSTALLATION TOOL




                91-8M0147078
             Provides both battery and clean power to allow power tilt operation during outboard
             rigging.
             For FourStroke V6 and V8
             SHIFT ACTUATOR TEST TEE HARNESS













                91-8M0150597
             Allows access to the engine harness through bullet connectors to use a DVOM
             without damage to the engine harness.


















             Mercury Service Tool Guide                                                                     191
