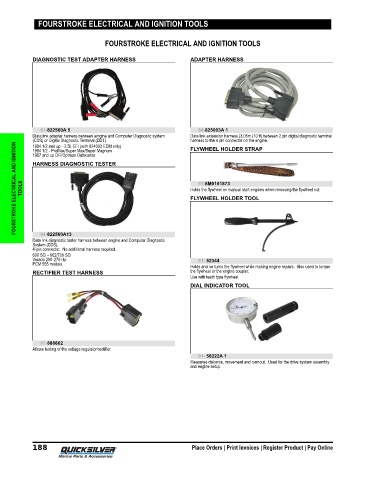

Page 195 - Mercury Service Tool Guide (2020) - 8M0163249

FOURSTROKE ELECTRICAL AND IGNITION TOOLS

FOURSTROKE ELECTRICAL AND IGNITION TOOLS

DIAGNOSTIC TEST ADAPTER HARNESS ADAPTER HARNESS

91-822560A 5 84-825003A 1
Diata link adapter harness between eingine and Computer Diagnostic system Data link extension harness (3.05m (10 ft) between 2 pin digital diagnostic terminal
(CDS) or Digital Diagnostic Terminal (DDT). harness to the 4 pin connector on the engine.
FOURSTROKE ELECTRICAL AND IGNITION TOOLS Holds the flywheel on manual start engines when removing the flywheel nut.
1994 1/2 and up ‑ 2.5L EFI (with 824003 ECM only)
FLYWHEEL HOLDER STRAP
1994 1/2 ‑ ProMax/Super Max/Super Magnum
1997 and up DFI/Optmax Outboards
HARNESS DIAGNOSTIC TESTER
91-8M0161873

FLYWHEEL HOLDER TOOL

84-822560A13
Data link diagnostic tester harness between engine and Computer Diagnostic
System (CDS).
4‑pin connector. No additional harness required.
600 SCi ‑ 662/700 SCi
Verado 200‑275 Hp 91- 52344
PCM 555 models
Holds and /or turns the flywheel while making engine repairs. Also used to torque
RECTIFIER TEST HARNESS the flywheel or the engine coupler.
Use with teeth type flywheel.
DIAL INDICATOR TOOL

91-888862
Allows testing of the voltage regulator/rectifier.
91- 58222A 1
Measures distance, movement and runnout. Used for the drive system assembly
and engine setup.
