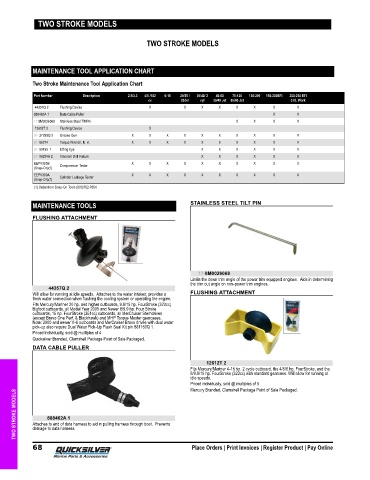

Page 75 - Mercury Service Tool Guide (2020) - 8M0163249

TWO STROKE MODELS

TWO STROKE MODELS

MAINTENANCE TOOL APPLICATION CHART
Two Stroke Maintenance Tool Application Chart

Part Number Description 2.5/3.3 4/5 /102 6-15 20/25 / 30/40/ 2 40-60 75-125 135-200 150-200EFI 200-250 EFI
cc 20Jet cyl 30/40 Jet 65/80 Jet 3.0L Work
44357Q 2 Flushing Devise X X X X X X X X
888462A 1 Data Cable Puller X X
17-8M0026068 Stainless Steel Tilt Pin X X X X
12612T 2 Flushing Device X
91- 37299Q 2 Grease Gun X X X X X X X X X X
91- 66274 Torque Wrench, lb. in. X X X X X X X X X X
91- 90455 1 Lifting Eye X X X X X X
91- 98234A 2 Transom Drill Fixture X X X X X X
EEPV303B Compression Tester X X X X X X X X X X
(Snap-On)(1)
EEPV309A X X X X X X X X X X
(Snap-On)(1) Cylinder Leakage Tester
(1) Order from Snap-On Tools (800)762-7664

MAINTENANCE TOOLS STAINLESS STEEL TILT PIN
FLUSHING ATTACHMENT

17-8M0026068
Limits the down trim angle of the power trim equipped engines. Aids in determining
the trim out angle on non‑power trim engines.
44357Q 2
Will allow for running at idle speeds. Attaches to the water intakes; provides a FLUSHING ATTACHMENT
fresh water connection when flushing the cooling system or operating the engine.
Fits Mercury/Mariner 20 hp. and higher outboards, 9.9/15 hp. FourStroke (323cc)
Bigfoot outboards, all Model Year 2005 and Newer 8/9.9 hp. Four Stroke
outboards, 15 hp. FourStroke (351cc) outboards, all MerCruiser Sterndrives
(except Bravo One Perf. & Blackhawk) and MHP Torque Master gearcases.
Note: 2000 and newer V‑6 outboards and MerCruiser Bravo drives with dual water
pick‑up also require Dual Water Pick‑Up Flush Seal Kit p/n 881150Q 1.
Priced individually, sold @ multiples of 4
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
DATA CABLE PULLER

12612T 2
Fits Mercury/Mariner 4‑15 hp. 2 cycle outboard, the 4/5/6 hp. FourStroke, and the
8/9.9/15 hp. FourStroke (323cc) with standard gearcase. Will allow for running at
idle speeds.
Priced individually, sold @ multiples of 5
Mercury Branded, Clamshell Package Point of Sale Packaged.
TWO STROKE MODELS Attaches to end of data harness to aid in pulling harness through boat. Prevents

888462A 1
damage to data harness.
