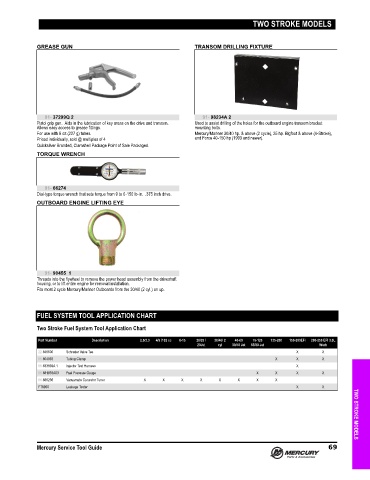

Page 76 - Mercury Service Tool Guide (2020) - 8M0163249

TWO STROKE MODELS

GREASE GUN TRANSOM DRILLING FIXTURE

91- 37299Q 2 91- 98234A 2
Pistol grip gun. Aids in the lubrication of key areas on the drive and transom. Used to assist drilling of the holes for the outboard engine transom bracket
Allows easy access to grease fittings. mounting bolts.
For use with 8 oz.(227 g) tubes. Mercury/Mariner 30/40 hp. & above (2 cycle), 25 hp. Bigfoot & above (4‑Stroke),
Priced individually, sold @ multiples of 4 and Force 40‑150 hp (1993 and newer).
Quicksilver Branded, Clamshell Package Point of Sale Packaged.
TORQUE WRENCH

91- 66274
Dial‑type torque wrench that sets torque from 9 to 0‑150 lb‑in. .375 inch drive.
OUTBOARD ENGINE LIFTING EYE

91- 90455 1
Threads into the flywheel to remove the power head assembly from the driveshaft
housing, or to lift entire engine for removal/installation.
Fits most 2 cycle Mercury/Mariner Outboards from the 30/40 (2 cyl.) on up.

FUEL SYSTEM TOOL APPLICATION CHART

Two Stroke Fuel System Tool Application Chart

Part Number Description 2.5/3.3 4/5 /102 cc 6-15 20/25 / 30/40/ 2 40-60 75-125 135-200 150-200EFI 200-250 EFI 3.0L
20Jet cyl 30/40 Jet 65/80 Jet Work
22-849606 Schrader Valve Tee X X
91-804063 Tubing Clamp X X X
91-833169A 1 Injector Test Harness X
91-881833A03 Fuel Pressure Gauge X X X X
91-889236 Vacuumate Caruretor Tuner X X X X X X X X
FT8950 Leakage Tester X X TWO STROKE MODELS

Mercury Service Tool Guide 69
