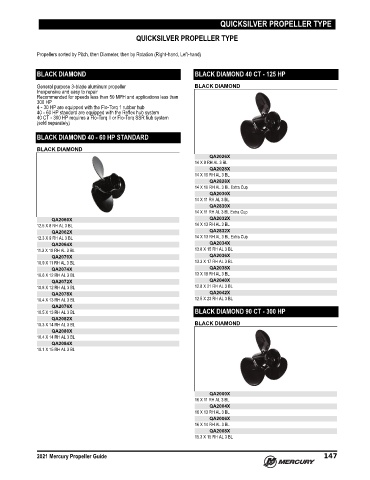

Page 154 - Mercury Propeller Guide (2021) - 8M0174460

QUICKSILVER PROPELLER TYPE

QUICKSILVER PROPELLER TYPE

Propellers sorted by Pitch, then Diameter, then by Rotation (Right‑hand, Left‑hand)

BLACK DIAMOND BLACK DIAMOND 40 CT - 125 HP

General purpose 3‑blade aluminum propeller BLACK DIAMOND
Inexpensive and easy to repair
Recommended for speeds less than 50 MPH and applications less than
300 HP
4 ‑ 30 HP are equipped with the Flo‑Torq 1 rubber hub
40 ‑ 60 HP standard are equipped with the Reflex hub system
40 CT ‑ 300 HP requires a Flo‑Torq II or Flo‑Torq SSR hub system
(sold separately)

BLACK DIAMOND 40 - 60 HP STANDARD
BLACK DIAMOND
QA2026X
14 X 9 RH AL 3 BL
QA2028X
14 X 10 RH AL 3 BL
QA2828X
14 X 10 RH AL 3 BL Extra Cup
QA2030X
14 X 11 RH AL 3 BL
QA2830X
14 X 11 RH AL 3 BL Extra Cup
QA2060X QA2032X
12.5 X 8 RH AL 3 BL 14 X 13 RH AL 3 BL
QA2062X QA2832X
12.3 X 9 RH AL 3 BL 14 X 13 RH AL 3 BL Extra Cup
QA2064X QA2034X
11.3 X 10 RH AL 3 BL 13.8 X 15 RH AL 3 BL
QA2070X QA2036X
10.9 X 11 RH AL 3 BL 13.3 X 17 RH AL 3 BL
QA2074X QA2038X
10.6 X 12 RH AL 3 BL 13 X 19 RH AL 3 BL
QA2072X QA2040X
10.8 X 12 RH AL 3 BL 12.8 X 21 RH AL 3 BL
QA2078X QA2042X
10.4 X 13 RH AL 3 BL 12.5 X 23 RH AL 3 BL
QA2076X
10.5 X 13 RH AL 3 BL BLACK DIAMOND 90 CT - 300 HP
QA2082X
10.3 X 14 RH AL 3 BL BLACK DIAMOND
QA2080X
10.4 X 14 RH AL 3 BL
QA2084X
10.1 X 15 RH AL 3 BL

QA2000X
16 X 11 RH AL 3 BL
QA2004X
16 X 13 RH AL 3 BL
QA2006X
16 X 14 RH AL 3 BL
QA2008X
15.3 X 15 RH AL 3 BL

2021 Mercury Propeller Guide 147
