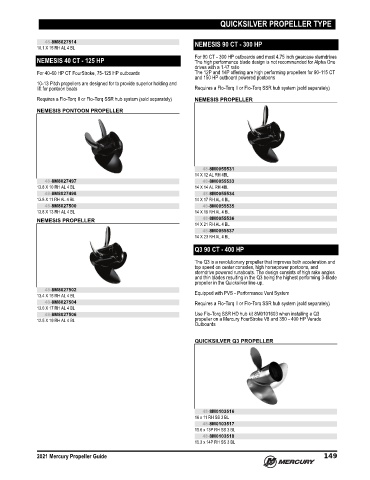

Page 156 - Mercury Propeller Guide (2021) - 8M0174460
P. 156
QUICKSILVER PROPELLER TYPE
48-8M8027514 NEMESIS 90 CT - 300 HP
10.1 X 15 RH AL 4 BL
NEMESIS 40 CT - 125 HP For 90 CT ‑ 300 HP outboards and most 4.75 inch gearcase sterndrives
The high performance blade design is not recommended for Alpha One
drives with a 1.47 ratio
For 40‑60 HP CT FourStroke, 75‑125 HP outboards The 12P and 14P offering are high performing propellers for 90‑115 CT
and 150 HP outboard powered pontoons
10‑13 Pitch propellers are designed for to provide superior holding and
lift for pontoon boats Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately)
Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately) NEMESIS PROPELLER
NEMESIS PONTOON PROPELLER
48-8M0055531
14 X 12 AL RH 4BL
48-8M8027497 48-8M0055533
13.8 X 10 RH AL 4 BL 14 X 14 AL RH 4BL
48-8M8027498 48-8M0055534
13.8 X 11 RH AL 4 BL 14 X 17 RH AL 4 BL
48-8M8027500 48-8M0055535
13.8 X 13 RH AL 4 BL 14 X 19 RH AL 4 BL
NEMESIS PROPELLER 48-8M0055536
14 X 21 RH AL 4 BL
48-8M0055537
14 X 23 RH AL 4 BL
Q3 90 CT - 400 HP
The Q3 is a revolutionary propeller that improves both acceleration and
top speed on center consoles, high horsepower pontoons, and
sterndrive powered runabouts. The design consists of high rake angles
and thin blades resulting in the Q3 being the highest performing 3‑blade
propeller in the Quicksilver line‑up.
48-8M8027502 Equipped with PVS ‑ Performance Vent System
13.4 X 15 RH AL 4 BL
48-8M8027504 Requires a Flo‑Torq II or Flo‑Torq SSR hub system (sold separately)
13.0 X 17 RH AL 4 BL
48-8M8027506 Use Flo‑Torq SSR HD hub kit 8M0101603 when installing a Q3
12.5 X 19 RH AL 4 BL propeller on a Mercury FourStroke V8 and 350 ‑ 400 HP Verado
Outboards
QUICKSILVER Q3 PROPELLER
48-8M0103516
16 x 11 RH SS 3 BL
48-8M0103517
15.6 x 13P RH SS 3 BL
48-8M0103518
15.3 x 14P RH SS 3 BL
2021 Mercury Propeller Guide 149
