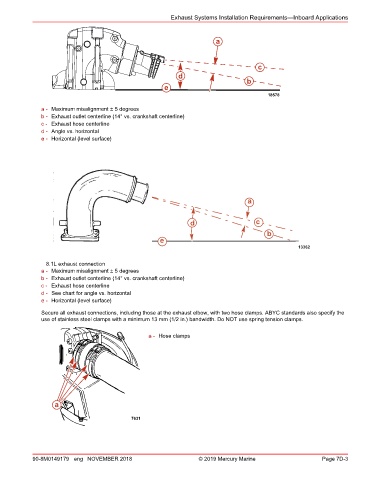

Exhaust Systems Installation Requirements—Inboard Applications

a

c
d
b
e
18578

a - Maximum misalignment ± 5 degrees
b - Exhaust outlet centerline (14° vs. crankshaft centerline)
c - Exhaust hose centerline
d - Angle vs. horizontal
e - Horizontal (level surface)

a

d c
b
e
13362

8.1L exhaust connection
a - Maximum misalignment ± 5 degrees
b - Exhaust outlet centerline (14° vs. crankshaft centerline)
c - Exhaust hose centerline
d - See chart for angle vs. horizontal
e - Horizontal (level surface)

Secure all exhaust connections, including those at the exhaust elbow, with two hose clamps. ABYC standards also specify the
use of stainless steel clamps with a minimum 13 mm (1/2 in.) bandwidth. Do NOT use spring tension clamps.

a - Hose clamps

a

7631
