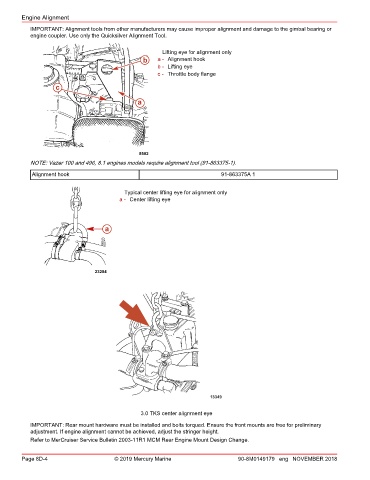

Engine Alignment
IMPORTANT: Alignment tools from other manufacturers may cause improper alignment and damage to the gimbal bearing or
engine coupler. Use only the Quicksilver Alignment Tool.

Lifting eye for alignment only
b a - Alignment hook
b - Lifting eye
c - Throttle body flange

c

a

8502
NOTE: Vazer 100 and 496, 8.1 engines models require alignment tool (91‑863375‑1).
Alignment hook 91‑863375A 1

Typical center lifting eye for alignment only
a - Center lifting eye

a

! 23284

13349

3.0 TKS center alignment eye

IMPORTANT: Rear mount hardware must be installed and bolts torqued. Ensure the front mounts are free for preliminary
adjustment. If engine alignment cannot be achieved, adjust the stringer height.
Refer to MerCruiser Service Bulletin 2003‑11R1 MCM Rear Engine Mount Design Change.

Page 8D-4 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
