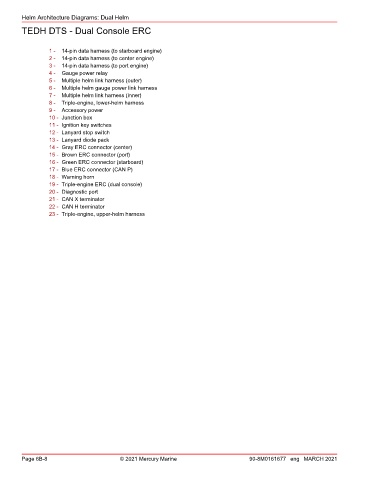

Helm Architecture Diagrams: Dual Helm
TEDH DTS - Dual Console ERC

1 - 14‑pin data harness (to starboard engine)
2 - 14‑pin data harness (to center engine)
3 - 14‑pin data harness (to port engine)
4 - Gauge power relay
5 - Multiple helm link harness (outer)
6 - Multiple helm gauge power link harness
7 - Multiple helm link harness (inner)
8 - Triple‑engine, lower‑helm harness
9 - Accessory power
10 - Junction box
11 - Ignition key switches
12 - Lanyard stop switch
13 - Lanyard diode pack
14 - Gray ERC connector (center)
15 - Brown ERC connector (port)
16 - Green ERC connector (starboard)
17 - Blue ERC connector (CAN P)
18 - Warning horn
19 - Triple‑engine ERC (dual console)
20 - Diagnostic port
21 - CAN X terminator
22 - CAN H terminator
23 - Triple‑engine, upper‑helm harness

Page 6B-8 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
