Page 369 - LATIN AMERICA ACCESSORIES GUIDE (2019) English
P. 369

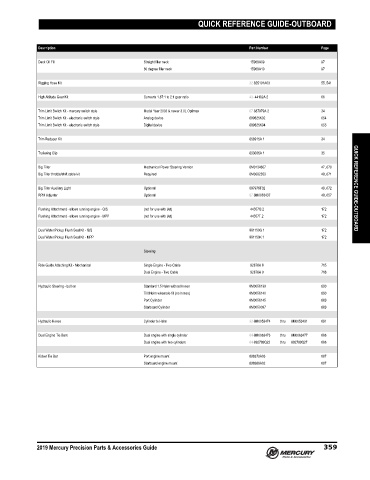

QUICK REFERENCE GUIDE-OUTBOARD
Description Part Number Page
Deck Oil Fill Straight filler neck 15969A09 97
80 degree filler neck 15969A10 97
Rigging Hose Kit 32-825191A03 55, 541
High Altitude Gear Kit Converts 1.87:1 to 2:1 gear ratio 43- 44102A 2 66
Trim Limit Switch Kit - mercury switch style Model Year 2003 & newer 3.0L Optimax 87-887979A 2 34
Trim Limit Switch Kit - electronic switch style Analog device 899625K02 654
Trim Limit Switch Kit - electronic switch style Digital device 899625K04 655
Trim Reducer Kit 858915A 1 34
Trailering Clip 833006A 1 35
Big Tiller Mechanical Power Steering Version 8M0134607 47, 670
Big Tiller throttle/shift cable kit Required 8M0082353 48, 671
Big Tiller Auxiliary Light Optional 897978T02 49, 672 QUICK REFERENCE GUIDE-OUTBOARD
RPM Adjuster Optional 87-8M0083437 48, 657
Flushing Attachment - allows running engine - Q/S (not for use with Jet) 44357Q 2 172
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2 172
Dual Water Pickup Flush Seal Kit - Q/S 881150Q 1 172
Dual Water Pickup Flush Seal Kit - MPP 881150K 1 172
Steering
Ride Guide Attaching Kit - Mechanical Single Engine - Two Cable 92876A 8 715
Dual Engine - Two Cable 92876A 9 716
Hydraulic Steering - bolt on Standard 1.5 Helm without hoses 8M0056139 690
Tilit Helm w/remote fill (no hoses) 8M0056140 690
Port Cylinder 8M0056145 689
Starboard Cylinder 8M0050097 689
Hydraulic Hoses Cylinder to Helm 32-8M0053474 thru 8M0053491 691
Dual Engine Tie Bars Dual engine with single cylinder 64-8M0063473 thru 8M0063477 686
Dual engine with two cylinders 64-892789Q22 thru 892789Q27 686
Kicker Tie Bar Port engine mount 898370A03 687
Starboard engine mount 898966A02 687
2019 Mercury Precision Parts & Accessories Guide 359
