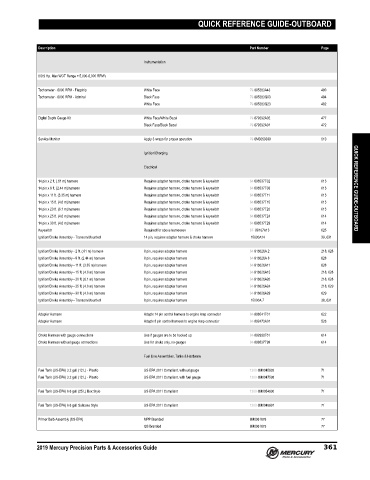

QUICK REFERENCE GUIDE-OUTBOARD
Description Part Number Page
Instrumentation
8/9.9 Hp. Max WOT Range = 5,000-6,000 RPM's
Tachometer - 6000 RPM - Flagship White Face 79-895283A43 480
Tachometer - 6000 RPM - Admiral Black Face 79-895283Q03 484
White Face 79-895283Q23 492
Digital Depth Gauge Kit White Face/White Bezel 79-879292A02 477
Black Face/Black Bezel 79-879292A01 472
Service Monitor Apply 3 wraps for proper operation 79-8M0050399 510
Ignition/Charging
Electrical
14 pin x 2 ft. (.61 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T02 613
14 pin x 8 ft. (2.44 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T08 613 QUICK REFERENCE GUIDE-OUTBOARD
14 pin x 11 ft. (3.35 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T11 613
14 pin x 15 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T15 613
14 pin x 20 ft. (6.1 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T20 613
14 pin x 25 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T24 614
14 pin x 30 ft. (4.6 m) harness Requires adapter harness, choke harness & keyswitch 84-896537T29 614
Keyswitch Required for above harnesses 87- 88107A13 625
Ignition/Choke Assembly - Transom Mounted 14 pin, requires adapter harness & choke harness 15000A14 39, 631
Ignition/Choke Assembly - 2 ft. (.61 m) harness 8 pin, requires adapter harness 84-816626A 2 218, 628
Ignition/Choke Assembly - 8 ft. (2.44 m) harness 8 pin, requires adapter harness 84-816626A 8 628
Ignition/Choke Assembly - 11 ft. (3.35 m) harness 8 pin, requires adapter harness 84-816626A11 628
Ignition/Choke Assembly - 15 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A15 218, 628
Ignition/Choke Assembly - 20 ft. (6.1 m) harness 8 pin, requires adapter harness 84-816626A20 218, 628
Ignition/Choke Assembly - 25 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A24 218, 629
Ignition/Choke Assembly - 30 ft. (4.6 m) harness 8 pin, requires adapter harness 84-816626A29 629
Ignition/Choke Assembly - Transom Mounted 8 pin, requires adapter harness 15000A 7 38, 631
Adapter Harness Adapts 14 pin control harness to engine Amp connector 84-896541T01 622
Adapter Harness Adapts 8 pin control harness to engine Amp connector 84-892473A01 526
Choke Harness with gauge connections Use if gauges are to be hooked up 84-892990T01 614
Choke Harness without gauge connections Use for choke only, no gauges 84-896537T99 614
Fuel Line Assemblies, Tanks & Hardware
Fuel Tank (US-EPA) 3.2 gal. (12 L) - Plastic US-EPA 2011 Compliant, without gauge 1200-8M0045692 71
Fuel Tank (US-EPA) 3.2 gal. (12 L) - Plastic US-EPA 2011 Compliant, with fuel gauge 1200-8M0047598 71
Fuel Tank (US-EPA) 6.6 gal. (25 L) Box Style US-EPA 2011 Compliant 1200-8M0054600 71
Fuel Tank (US-EPA) 6.6 gal. Suitcase Style US-EPA 2011 Compliant 1200-8M0045691 71
Primer Bulb Assembly (US-EPA) MPP Branded 8M0061876 77
QS Branded 8M0061875 77
2019 Mercury Precision Parts & Accessories Guide 361
