Page 402 - LATIN AMERICA ACCESSORIES GUIDE (2019) English
P. 402

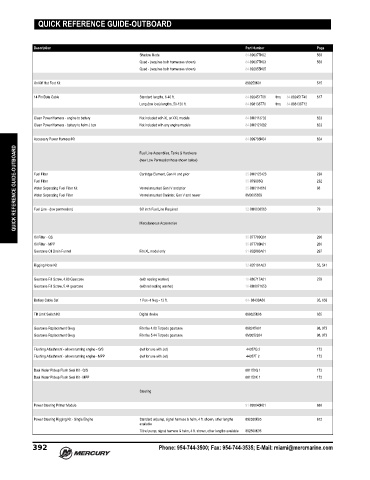

QUICK REFERENCE GUIDE-OUTBOARD
Description Part Number Page
Shadow Mode 84-896377K02 569
Quad - (requires both harnesses shown) 84-896377K03 569
Quad - (requires both harnesses shown) 84-892955K05
On/Off Hot Foot Kit 898259K01 515
14 Pin Data Cable Standard lengths, 6-40 ft. 84-892451T06 thru 84-892451T40 617
Long (low loss) lengths, 50-120 ft. 84-898138T70 thru 84-898138T12
Clean Power Harness - engine to battery Not included wtih XL or XXL models 84-8M0113732 623
Clean Power Harness - battery to helm J box Not included with any engine models 84-8M0127682 623
Accessory Power Harness Kit Fuel Line Assemblies, Tanks & Hardware 84-899785K04 624
QUICK REFERENCE GUIDE-OUTBOARD Fuel Filter Cartridge Element, Gen IV and prior 35-8M0122423 239
(new Low Permeation hose shown below)
35-879885Q
Fuel Filter
232
Vessel mounted Gen IV and prior
35-8M0114618
88
Water Separating Fuel Filter Kit
Water Separating Fuel Filter
8M0095659
Vessel mounted Canister, Gen V and newer
32-8M0038563
Fuel Line - (low permeation)
79
3/8 inch Fuel Line Required
Oil Filter - QS Miscellaneous Accessories 35-877769Q01 296
Oil Filter - MPP 35-877769K01 260
Gearcase Oil Drain Funnel Fits XL model only 91-892866A01 297
Rigging Hose Kit 32-825191A03 55, 541
Gearcase Fill Screw, 4.80 Gearcase (with sealing washer) 10-880717A01 278
Gearcase Fill Screw, 5.44 gearcase (without sealing washer) 10-8M0071653
Battery Cable Set 1 Pos -1 Neg - 12 ft. 84- 88439A50 35, 659
Tilt Limit Switch Kit Digital device 899625K06 655
Gearcase Replacement Skeg Fits the 4.80 Torpedo gearcase 898245A01 98, 972
Gearcase Replacement Skeg Fits the 5.44 Torpedo gearcase 8M0052924 98, 972
Flushing Attachment - allows running engine - Q/S (not for use with Jet) 44357Q 2 172
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2 172
Dual Water Pickup Flush Seal Kit - Q/S 881150Q 1 172
Dual Water Pickup Flush Seal Kit - MPP 881150K 1 172
Steering
Power Steering Primer Module 91-895040K01 680
Power Steering Rigging Kit - Single Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892380K05 672
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892560K35
392 Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
