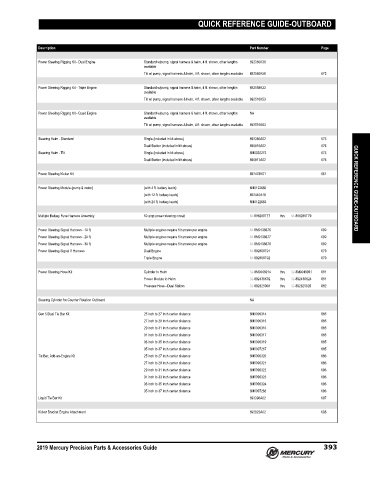

QUICK REFERENCE GUIDE-OUTBOARD
Description Part Number Page
Power Steering Rigging Kit - Dual Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892380K36
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892560K56 673
Power Steering Rigging Kit - Triple Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths 892558K33
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K53
Power Steering Rigging Kit - Quad Engine Standard w/pump, signal harness & helm, 4 ft. shown, other lengths NA
available
Tilt w/ pump, signal harness & helm, 4 ft. shown, other lengths available 892516K63
Steering Helm - Standard Single (included in kit above) 892380A02 675
Dual Station (included in kit above) 895816A02 676
Steering Helm - Tilt Single (included in kit above) 8M0030272 675
Dual Station (included in kit above) 895817A02 676
Power Steering Kicker Kit 897478K01 661
Power Steering Module (pump & motor) (with 4 ft. battery leads) 8M0122660 QUICK REFERENCE GUIDE-OUTBOARD
(with 12 ft. battery leads) 892440A18
(with 24 ft. battery leads) 8M0122663
Multiple Battery Fuse Harness Assembly 50 amp power steering circuit 84-898289T77 thru 84-898289T79
Power Steering Signal Harness - 10 ft. Multiple engines require 1 harness per engine 84-8M0138676 680
Power Steering Signal Harness - 20 ft. Multiple engines require 1 harness per engine 84-8M0138677 680
Power Steering Signal Harness - 30 ft. Multiple engines require 1 harness per engine 84-8M0138678 680
Power Steering Signal Y Harness Dual Engine 84-892868T01 679
Triple Engine 84-892868T02 679
Power Steering Hose Kit Cylinder to Helm 32-8M0046914 thru 32-8M0046931 681
Power Module to Helm 32-892438K02 thru 32-892438K24 681
Pressure Hose - Dual Station 32-892825008 thru 32-892825026 682
Steering Cylinder for Counter Rotation Outboard NA
Gen 5 Dual Tie Bar Kit 25 inch to 27 inch center distance 8M0096314 685
27 inch to 29 inch center distance 8M0096315 685
29 inch to 31 inch center distance 8M0096316 685
31 inch to 33 inch center distance 8M0096317 685
33 inch to 35 inch center distance 8M0096319 685
35 inch to 37 inch center distance 8M0097267 685
Tie Bar, Add-an-Engine Kit 25 inch to 27 inch center distance 8M0096320 686
27 inch to 29 inch center distance 8M0096321 686
29 inch to 31 inch center distance 8M0096322 686
31 inch to 33 inch center distance 8M0096323 686
33 inch to 35 inch center distance 8M0096324 686
35 inch to 37 inch center distance 8M0097268 686
Liquid Tie Bar Kit 893396A02 687
Kicker Bracket Engine Attachment 892822A02 688
2019 Mercury Precision Parts & Accessories Guide 393
