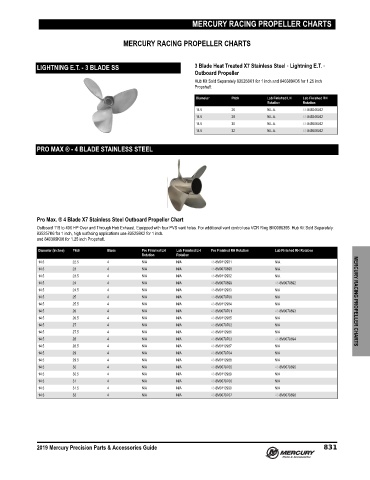

Page 841 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

MERCURY RACING PROPELLER CHARTS

MERCURY RACING PROPELLER CHARTS

LIGHTNING E.T. - 3 BLADE SS 3 Blade Heat Treated X7 Stainless Steel ‑ Lightning E.T. ‑
Outboard Propeller
Hub Kit Sold Separately 835258K1 for 1 inch and 840389K06 for 1.25 inch
Propshaft

Diameter Pitch Lab Finished LH Lab Finished RH
Rotation Rotation
14.5 26 N.L.A. 48-849246L62
14.5 28 N.L.A. 48-849248L62
14.5 30 N.L.A. 48-849506L62
14.5 32 N.L.A. 48-849508L62

PRO MAX ® - 4 BLADE STAINLESS STEEL

Pro Max. ® 4 Blade X7 Stainless Steel Outboard Propeller Chart
Outboard 115 to 400 HP Over and Through Hub Exhaust. Equipped with four PVS vent holes. For additional vent control use VCR Ring 8M0086395. Hub Kit Sold Separately:
835257K6 for 1 inch, high surfacing applications use 835258K2 for 1 inch.
and 840389K06 for 1.25 inch Propshaft.
Diameter (Inches) Pitch Blade Pro Finished LH Lab Finished LH Pro Finished RH Rotation Lab Finished RH Rotation
Rotation Rotation
14.5 22.5 4 N/A N/A 48-8M0112981 N/A
14.5 23 4 N/A N/A 48-8M0079698 N/A
14.5 23.5 4 N/A N/A 48-8M0112982 N/A
14.5 24 4 N/A N/A 48-8M0079699 48-8M0079692
14.5 24.5 4 N/A N/A 48-8M0112983 N/A
14.5 25 4 N/A N/A 48-8M0079700 N/A
14.5 25.5 4 N/A N/A 48-8M0112984 N/A MERCURY RACING PROPELLER CHARTS
14.5 26 4 N/A N/A 48-8M0079701 48-8M0079693
14.5 26.5 4 N/A N/A 48-8M0112985 N/A
14.5 27 4 N/A N/A 48-8M0079702 N/A
14.5 27.5 4 N/A N/A 48-8M0112986 N/A
14.5 28 4 N/A N/A 48-8M0079703 48-8M0079694
14.5 28.5 4 N/A N/A 48-8M0112987 N/A
14.5 29 4 N/A N/A 48-8M0079704 N/A
14.5 29.5 4 N/A N/A 48-8M0112988 N/A
14.5 30 4 N/A N/A 48-8M0079705 48-8M0079695
14.5 30.5 4 N/A N/A 48-8M0112989 N/A
14.5 31 4 N/A N/A 48-8M0079706 N/A
14.5 31.5 4 N/A N/A 48-8M0112990 N/A
14.5 32 4 N/A N/A 48-8M0079707 48-8M0079696

2019 Mercury Precision Parts & Accessories Guide 831
