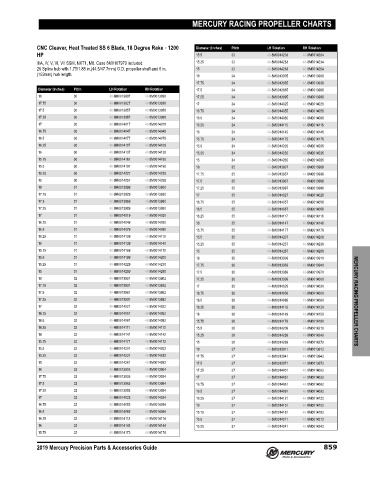

MERCURY RACING PROPELLER CHARTS

CNC Cleaver, Heat Treated SS 6 Blade, 18 Degree Rake ‑ 1200 Diameter (Inches) Pitch LH Rotation RH Rotation
HP 15.5 33 48-8M0014203 48-8M0014204
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 included. 15.25 33 48-8M0014233 48-8M0014234
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 15 33 48-8M0014263 48-8M0014264
(152mm) hub length 18 34 48-8M0013905 48-8M0013906
17.75 34 48-8M0013935 48-8M0013936
Diameter (Inches) Pitch LH Rotation RH Rotation 17.5 34 48-8M0013965 48-8M0013966
18 30 48-8M0013897 48-8M0013898 17.25 34 48-8M0013995 48-8M0013996
17.75 30 48-8M0013927 48-8M0013928 17 34 48-8M0014025 48-8M0014026
17.5 30 48-8M0013957 48-8M0013958 16.75 34 48-8M0014055 48-8M0014056
17.25 30 48-8M0013987 48-8M0013988 16.5 34 48-8M0014085 48-8M0014086
17 30 48-8M0014017 48-8M0014018 16.25 34 48-8M0014115 48-8M0014116
16.75 30 48-8M0014047 48-8M0014048 16 34 48-8M0014145 48-8M0014146
16.5 30 48-8M0014077 48-8M0014078 15.75 34 48-8M0014175 48-8M0014176
16.25 30 48-8M0014107 48-8M0014108 15.5 34 48-8M0014205 48-8M0014206
16 30 48-8M0014137 48-8M0014138 15.25 34 48-8M0014235 48-8M0014236
15.75 30 48-8M0014167 48-8M0014168 15 34 48-8M0014265 48-8M0014266
15.5 30 48-8M0014197 48-8M0014198 18 35 48-8M0013907 48-8M0013908
15.25 30 48-8M0014227 48-8M0014228 17.75 35 48-8M0013937 48-8M0013938
15 30 48-8M0014257 48-8M0014258 17.5 35 48-8M0013967 48-8M0013968
18 31 48-8M0013899 48-8M0013900 17.25 35 48-8M0013997 48-8M0013998
17.75 31 48-8M0013929 48-8M0013930 17 35 48-8M0014027 48-8M0014028
17.5 31 48-8M0013959 48-8M0013960 16.75 35 48-8M0014057 48-8M0014058
17.25 31 48-8M0013989 48-8M0013990 16.5 35 48-8M0014087 48-8M0014088
17 31 48-8M0014019 48-8M0014020 16.25 35 48-8M0014117 48-8M0014118
16.75 31 48-8M0014049 48-8M0014050 16 35 48-8M0014147 48-8M0014148
16.5 31 48-8M0014079 48-8M0014080 15.75 35 48-8M0014177 48-8M0014178
16.25 31 48-8M0014109 48-8M0014110 15.5 35 48-8M0014207 48-8M0014208
16 31 48-8M0014139 48-8M0014140 15.25 35 48-8M0014237 48-8M0014238
15.75 31 48-8M0014169 48-8M0014170 15 35 48-8M0014267 48-8M0014268
15.5 31 48-8M0014199 48-8M0014200 18 36 48-8M0013909 48-8M0013910
15.25 31 48-8M0014229 48-8M0014230 17.75 36 48-8M0013939 48-8M0013940
15 31 48-8M0014259 48-8M0014260 17.5 36 48-8M0013969 48-8M0013970
18 32 48-8M0013901 48-8M0013902 17.25 36 48-8M0013999 48-8M0014000
17.75 32 48-8M0013931 48-8M0013932 17 36 48-8M0014029 48-8M0014030
17.5 32 48-8M0013961 48-8M0013962 16.75 36 48-8M0014059 48-8M0014060
17.25 32 48-8M0013991 48-8M0013992 16.5 36 48-8M0014089 48-8M0014090 MERCURY RACING PROPELLER CHARTS
17 32 48-8M0014021 48-8M0014022 16.25 36 48-8M0014119 48-8M0014120
16.75 32 48-8M0014051 48-8M0014052 16 36 48-8M0014149 48-8M0014150
16.5 32 48-8M0014081 48-8M0014082 15.75 36 48-8M0014179 48-8M0014180
16.25 32 48-8M0014111 48-8M0014112 15.5 36 48-8M0014209 48-8M0014210
16 32 48-8M0014141 48-8M0014142 15.25 36 48-8M0014239 48-8M0014240
15.75 32 48-8M0014171 48-8M0014172 15 36 48-8M0014269 48-8M0014270
15.5 32 48-8M0014201 48-8M0014202 18 37 48-8M0013911 48-8M0013912
15.25 32 48-8M0014231 48-8M0014232 17.75 37 48-8M0013941 48-8M0013942
15 32 48-8M0014261 48-8M0014262 17.5 37 48-8M0013971 48-8M0013972
18 33 48-8M0013903 48-8M0013904 17.25 37 48-8M0014001 48-8M0014002
17.75 33 48-8M0013933 48-8M0013934 17 37 48-8M0014031 48-8M0014032
17.5 33 48-8M0013963 48-8M0013964 16.75 37 48-8M0014061 48-8M0014062
17.25 33 48-8M0013993 48-8M0013994 16.5 37 48-8M0014091 48-8M0014092
17 33 48-8M0014023 48-8M0014024 16.25 37 48-8M0014121 48-8M0014122
16.75 33 48-8M0014053 48-8M0014054 16 37 48-8M0014151 48-8M0014152
16.5 33 48-8M0014083 48-8M0014084 15.75 37 48-8M0014181 48-8M0014182
16.25 33 48-8M0014113 48-8M0014114 15.5 37 48-8M0014211 48-8M0014212
16 33 48-8M0014143 48-8M0014144 15.25 37 48-8M0014241 48-8M0014242
15.75 33 48-8M0014173 48-8M0014174

2019 Mercury Precision Parts & Accessories Guide 859
