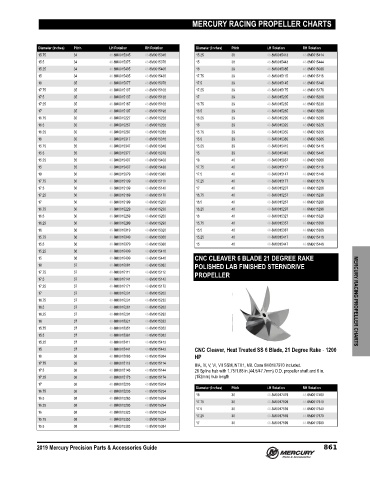

Page 871 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
15.75 34 48-8M0015345 48-8M0015346 15.25 38 48-8M0015413 48-8M0015414
15.5 34 48-8M0015375 48-8M0015376 15 38 48-8M0015443 48-8M0015444
15.25 34 48-8M0015405 48-8M0015406 18 39 48-8M0015085 48-8M0015086
15 34 48-8M0015435 48-8M0015436 17.75 39 48-8M0015115 48-8M0015116
18 35 48-8M0015077 48-8M0015078 17.5 39 48-8M0015145 48-8M0015146
17.75 35 48-8M0015107 48-8M0015108 17.25 39 48-8M0015175 48-8M0015176
17.5 35 48-8M0015137 48-8M0015138 17 39 48-8M0015205 48-8M0015206
17.25 35 48-8M0015167 48-8M0015168 16.75 39 48-8M0015235 48-8M0015236
17 35 48-8M0015197 48-8M0015198 16.5 39 48-8M0015265 48-8M0015266
16.75 35 48-8M0015227 48-8M0015228 16.25 39 48-8M0015295 48-8M0015296
16.5 35 48-8M0015257 48-8M0015258 16 39 48-8M0015325 48-8M0015326
16.25 35 48-8M0015287 48-8M0015288 15.75 39 48-8M0015355 48-8M0015356
16 35 48-8M0015317 48-8M0015318 15.5 39 48-8M0015385 48-8M0015386
15.75 35 48-8M0015347 48-8M0015348 15.25 39 48-8M0015415 48-8M0015416
15.5 35 48-8M0015377 48-8M0015378 15 39 48-8M0015445 48-8M0015446
15.25 35 48-8M0015407 48-8M0015408 18 40 48-8M0015087 48-8M0015088
15 35 48-8M0015437 48-8M0015438 17.75 40 48-8M0015117 48-8M0015118
18 36 48-8M0015079 48-8M0015080 17.5 40 48-8M0015147 48-8M0015148
17.75 36 48-8M0015109 48-8M0015110 17.25 40 48-8M0015177 48-8M0015178
17.5 36 48-8M0015139 48-8M0015140 17 40 48-8M0015207 48-8M0015208
17.25 36 48-8M0015169 48-8M0015170 16.75 40 48-8M0015237 48-8M0015238
17 36 48-8M0015199 48-8M0015200 16.5 40 48-8M0015267 48-8M0015268
16.75 36 48-8M0015229 48-8M0015230 16.25 40 48-8M0015297 48-8M0015298
16.5 36 48-8M0015259 48-8M0015260 16 40 48-8M0015327 48-8M0015328
16.25 36 48-8M0015289 48-8M0015290 15.75 40 48-8M0015357 48-8M0015358
16 36 48-8M0015319 48-8M0015320 15.5 40 48-8M0015387 48-8M0015388
15.75 36 48-8M0015349 48-8M0015350 15.25 40 48-8M0015417 48-8M0015418
15.5 36 48-8M0015379 48-8M0015380 15 40 48-8M0015447 48-8M0015448
15.25 36 48-8M0015409 48-8M0015410
15 36 48-8M0015439 48-8M0015440 CNC CLEAVER 6 BLADE 21 DEGREE RAKE
18 37 48-8M0015081 48-8M0015082 POLISHED LAB FINISHED STERNDRIVE
17.75 37 48-8M0015111 48-8M0015112 PROPELLER
17.5 37 48-8M0015141 48-8M0015142
17.25 37 48-8M0015171 48-8M0015172
17 37 48-8M0015201 48-8M0015202
16.75 37 48-8M0015231 48-8M0015232 MERCURY RACING PROPELLER CHARTS
16.5 37 48-8M0015261 48-8M0015262
16.25 37 48-8M0015291 48-8M0015292
16 37 48-8M0015321 48-8M0015322
15.75 37 48-8M0015351 48-8M0015352
15.5 37 48-8M0015381 48-8M0015382
15.25 37 48-8M0015411 48-8M0015412
15 37 48-8M0015441 48-8M0015442 CNC Cleaver, Heat Treated SS 6 Blade, 21 Degree Rake ‑ 1200
18 38 48-8M0015083 48-8M0015084 HP
17.75 38 48-8M0015113 48-8M0015114
IIIA, IV, V, VI, VII SSM, NTX1, M8. Case 8M0107970 included.
17.5 38 48-8M0015143 48-8M0015144 26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in.
17.25 38 48-8M0015173 48-8M0015174 (152mm) hub length
17 38 48-8M0015203 48-8M0015204
Diameter (Inches) Pitch LH Rotation RH Rotation
16.75 38 48-8M0015233 48-8M0015234
18 30 48-8M0017479 48-8M0017480
16.5 38 48-8M0015263 48-8M0015264
17.75 30 48-8M0017509 48-8M0017510
16.25 38 48-8M0015293 48-8M0015294
17.5 30 48-8M0017539 48-8M0017540
16 38 48-8M0015323 48-8M0015324
17.25 30 48-8M0017569 48-8M0017570
15.75 38 48-8M0015353 48-8M0015354
17 30 48-8M0017599 48-8M0017600
15.5 38 48-8M0015383 48-8M0015384
2019 Mercury Precision Parts & Accessories Guide 861
