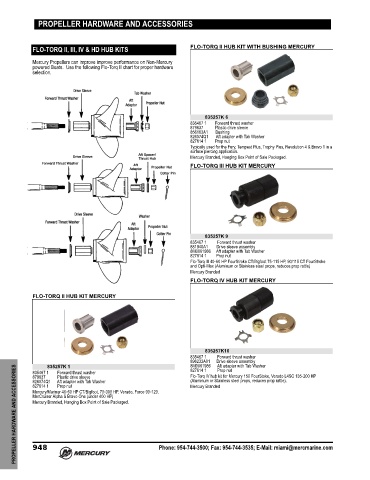

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II, III, IV & HD HUB KITS FLO-TORQ II HUB KIT WITH BUSHING MERCURY

Mercury Propellers can improve improve performance on Non‑Mercury
powered Boats. Use the following Flo‑Torq II chart for proper hardware
selection.

835257K 6
835467 1 Forward thrust washer
879637 Plastic drive sleeve
856163A1 Bushing
826074Q1 Aft adapter with Tab Washer
827614 1 Prop nut
Typically used for the Fury, Tempest Plus, Trophy Plus, Revolution 4 & Bravo 1 in a
surface piercing application.
Mercury Branded, Hanging Box Point of Sale Packaged.
FLO-TORQ III HUB KIT MERCURY

835257K 9
835467 1 Forward thrust washer
881940A1 Drive sleeve assembly
8M0061986 Aft adapter with Tab Washer
827614 1 Prop nut
Flo‑Torq III 40‑60 HP FourStroke CT/Bigfoot 75‑115 HP, 90/115 CT FourStroke
and Opti‑Max (Aluminum or Stainless steel props, reduces prop rattle)
Mercury Branded
FLO-TORQ IV HUB KIT MERCURY

FLO-TORQ II HUB KIT MERCURY

835257K10
835467 1 Forward thrust washer
896233A01 Drive sleeve assembly
8M0061986 Aft adapter with Tab Washer
835257K 1
PROPELLER HARDWARE AND ACCESSORIES Mercury/Mariner 40‑60 HP CT/Bigfoot, 70‑300 HP, Verado, Force 90‑120, Phone: 954-744-3500; Fax: 954-744-3535; E-Mail: miami@mercmarine.com
827614 1 Prop nut
835467 1 Forward thrust washer
Flo‑Torq IV hub kit for Mercury 150 FourStoke, Verado L4SC 135‑200 HP
879637 Plastic drive sleeve
(Aluminum or Stainless steel props, reduces prop rattle).
826074Q1 Aft adapter with Tab Washer
827614 1 Prop nut
Mercury Branded
MerCruiser Alpha & Bravo One (under 400 HP)
Mercury Branded, Hanging Box Point of Sale Packaged.

948
