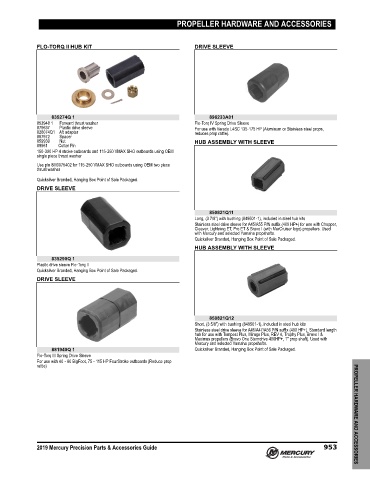

Page 963 - LATIN AMERICA ACCESSORIES GUIDE (2019) English

PROPELLER HARDWARE AND ACCESSORIES

FLO-TORQ II HUB KIT DRIVE SLEEVE

835274Q 1 896233A01
853948 1 Forward thrust washer Flo‑Torq IV Spring Drive Sleeve
879637 Plastic drive sleeve For use with Verado L4SC 135‑175 HP (Aluminum or Stainless steel props,
826074Q1 Aft adapter reduces prop rattle).
887972 Spacer
859939 Nut HUB ASSEMBLY WITH SLEEVE
89961 Cotter Pin
150‑300 HP 4 stroke outboards and 115‑250 VMAX SHO outboards using OEM
single piece thrust washer
Use p/n 8M0075402 for 115‑250 VMAX SHO outboards using OEM two piece
thrust washer
Quicksilver Branded, Hanging Box Point of Sale Packaged.
DRIVE SLEEVE

850821Q11
Long, (3 7/8") with bushing (849501‑1), included in steel hub kits
Stainless steel drive sleeve for A45/A55 P/N suffix (400 HP+) for use with Chopper,
Cleaver, Lightning ET, Pro ET & Bravo I (with MerCruiser logo) propellers. Used
with Mercury and selected Yamaha propshafts.
Quicksilver Branded, Hanging Box Point of Sale Packaged.
HUB ASSEMBLY WITH SLEEVE

835290Q 1
Plastic drive sleeve Flo‑Torq II
Quicksilver Branded, Hanging Box Point of Sale Packaged.
DRIVE SLEEVE

850821Q12
Short, (3 5/8") with bushing (849501‑1), included in steel hub kits
Stainless steel drive sleeve for A46/A47/A56 P/N suffix (400 HP+). Standard length
hub for use with Tempest Plus, Mirage Plus, REV 4, Trophy Plus, Bravo I &
Maximus propellers (Bravo One Sterndrive 400HP+, 1" prop shaft). Used with
Mercury and selected Yamaha propshafts.
881940Q 1 Quicksilver Branded, Hanging Box Point of Sale Packaged.
Flo‑Torq III Spring Drive Sleeve
For use with 40 ‑ 60 BigFoot, 75 ‑ 115 HP FourStroke outboards (Reduce prop
rattle)

2019 Mercury Precision Parts & Accessories Guide 953 PROPELLER HARDWARE AND ACCESSORIES
