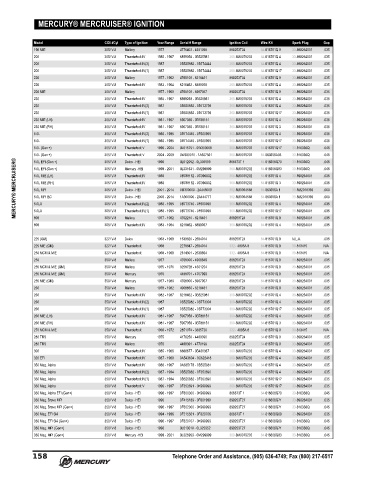

Page 167 - Canada Parts Guide (2021) - 8M0174475
P. 167
MERCURY® MERCRUISER® IGNITION
Model CID/ #Cyl Type of Ignition Year Range Serial # Range Ignition Coil Wire Kit Spark Plug Gap
198 MIE 305/ V-8 Mallory 1977 4776402 - 4931099 898253T24 84-816761Q 9 33-898264001 .035
200 305/ V-8 Thunderbolt IV 1985 - 1987 6899058 - 0B525981 300-8M0079202 84-816761Q 4 33-898264001 .035
200 305/ V-8 Thunderbolt IV(2) 1987 0B525982 - 0B774444 300-8M0079202 84-816761Q 4 33-898264001 .035
200 305/ V-8 Thunderbolt IV(1) 1987 0B525982 - 0B774444 300-8M0079202 84-816761Q17 33-898264001 .035
228 305/ V-8 Mallory 1977 - 1982 4765100 - 6218461 898253T24 84-816761Q 9 33-898264001 .035
228 305/ V-8 Thunderbolt IV 1983 - 1984 6218462 - 6899268 300-8M0079202 84-816761Q 4 33-898264001 .035
228 MIE 305/ V-8 Mallory 1977 - 1980 4765100 - 5907057 898253T24 84-816761Q 9 33-898264001 .035
230 305/ V-8 Thunderbolt IV 1985 - 1987 6899269 - 0B525981 300-8M0079202 84-816761Q 4 33-898264001 .035
230 305/ V-8 Thunderbolt IV(2) 1987 0B525982 - 0B773739 300-8M0079202 84-816761Q 4 33-898264001 .035
230 305/ V-8 Thunderbolt IV(1) 1987 0B525982 - 0B773739 300-8M0079202 84-816761Q17 33-898264001 .035
230 MIE (LH) 305/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 300-8M0079202 84-816761Q 4 33-898264001 .035
230 MIE (RH) 305/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 300-8M0079202 84-816761Q 3 33-898264001 .035
5.0L 305/ V-8 Thunderbolt IV(2) 1988 - 1995 0B774445 - 0F600999 300-8M0079202 84-816761Q 4 33-898264001 .035
5.0L 305/ V-8 Thunderbolt IV(1) 1988 - 1995 0B774445 - 0F600999 300-8M0079202 84-816761Q17 33-898264001 .035
5.0L (Gen +) 305/ V-8 Thunderbolt V 1998 - 2004 0L015751 - 0W300009 300-8M0079202 84-816761Q17 33-816336Q .045
5.0L (Gen +) 305/ V-8 Thunderbolt V 2004 - 2009 0W300010 - 1A607561 300-8M0079202 84-863656A05 33-816336Q .045
MERCURY® MERCRUISER® 5.0L MIE (LH) 305/ V-8 Thunderbolt IV 1988 0B788152 - 0C396832 300-8M0079202 84-816761Q 4 33-898264001 .035
0L012052 - 0L339999
806673T 1
84-816608Q70
305/ V-8
Delco - HEI
1998
33-816336Q
.045
5.0L EFI (Gen +)
0L331631 - 0M299999
.045
5.0L EFI (Gen +)
1999 - 2001
84-816608Q83
Mercury -HEI
33-816336Q
305/ V-8
300-8M0079202
.035
305/ V-8
33-898264001
300-8M0079202
84-816761Q 3
Thunderbolt IV
1988
0B788152 - 0C396832
5.0L MIE (RH)
2001 - 2014
5.0L MPI
84-863656A 1
33-8M2018369
Delco - HEI
0M300000 - 2A445009
392-8M0054588
.060
305/ V-8
305/ V-8
84-863656A 1
1A300000 - 2A444777
392-8M0054588
Delco - HEI
2008 - 2014
33-8M2018369
5.0L MPI EC
.060
33-898264001
Thunderbolt IV(2)
.035
0B773740 - 0F600999
1988 - 1995
300-8M0079202
305/ V-8
5.0LX
84-816761Q 4
5.0LX
4762210 - 6218461
1977 - 1982
84-816761Q 9
898253T24
33-898264001
Mallory
305/ V-8
898
.035
6218462 - 6899057
.035
33-898264001
Thunderbolt IV
898 305/ V-8 Thunderbolt IV(1) 1988 - 1995 0B773740 - 0F600999 300-8M0079202 84-816761Q17 33-898264001 .035
1983 - 1984
305/ V-8
84-816761Q 4
300-8M0079202
225 (GM) 327/ V-8 Delco 1963 - 1969 1539620 - 2694014 898253T24 84-816761Q 9 N.L.A. .035
225 MIE (GM) 327/ V-8 Thunderbolt 1968 2278647 - 2694014 332- 4895A 8 84-816761Q 9 33-813415 N/A
250 MCM & MIE 327/ V-8 Thunderbolt 1968 - 1969 2314301 - 2639854 332- 4895A 8 84-816761Q 9 33-813415 N/A
250 350/ V-8 Mallory 1977 4768000 - 4908849 898253T24 84-816761Q 9 33-898264001 .035
255 MCM & MIE (GM) 350/ V-8 Mallory 1975 - 1976 3258728 - 4501254 898253T24 84-816761Q 9 33-898264001 .035
255 MCM & MIE (GM) 350/ V-8 Mercury 1976 4498701 - 4767999 898253T24 84-816761Q 9 33-898264001 .035
255 MIE (GM) 350/ V-8 Mercury 1977 - 1980 4768000 - 5907057 898253T24 84-816761Q 9 33-898264001 .035
260 350/ V-8 Mallory 1978 - 1982 4908850 - 6218461 898253T24 84-816761Q 9 33-898264001 .035
260 350/ V-8 Thunderbolt IV 1982 - 1987 6218462 - 0B525981 300-8M0079202 84-816761Q 4 33-898264001 .035
260 350/ V-8 Thunderbolt IV(2) 1987 0B525982 - 0B773304 300-8M0079202 84-816761Q 4 33-898264001 .035
260 350/ V-8 Thunderbolt IV(1) 1987 0B525982 - 0B773304 300-8M0079202 84-816761Q17 33-898264001 .035
260 MIE (LH) 350/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 300-8M0079202 84-816761Q 4 33-898264001 .035
260 MIE (RH) 350/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 300-8M0079202 84-816761Q 3 33-898264001 .035
270 MCM & MIE 350/ V-8 Thunderbolt 1969 - 1972 2851074 - 3385720 332- 4895A 8 84-816761Q 9 33-813415 N/A
280 TRS 350/ V-8 Mercury 1975 4176250 - 4499390 898253T24 84-816761Q 9 33-898264001 .035
280 TRS 350/ V-8 Mallory 1976 4499391 - 4770199 898253T24 84-816761Q 9 33-898264001 .035
300 350/ V-8 Thunderbolt IV 1985 - 1986 6668677 - 0B430367 300-8M0079202 84-816761Q 4 33-898264001 .035
320 EFI 350/ V-8 Thunderbolt IV 1987 - 1989 0A543604 - 0C622418 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV 1986 - 1987 0A635178 - 0B525981 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV(2) 1987 - 1994 0B525982 - 0F353690 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV(1) 1987 - 1994 0B525982 - 0F353690 300-8M0079202 84-816761Q17 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt V 1995 - 1997 0F353691 - 0K999999 300-8M0079202 84-816761Q17 33-898264001 .035
350 Mag. Alpha EFI (Gen+) 350/ V-8 Delco - HEI 1996 - 1997 0F800300 - 0K999999 806673T 1 84-816608Q70 33-816336Q .045
350 Mag. Bravo MPI 350/ V-8 Delco - HEI 1995 0F415189 - 0F601999 898253T27 84-816608Q71 33-898264001 .035
350 Mag. Bravo MPI (Gen+) 350/ V-8 Delco - HEI 1996 - 1997 0F602000 - 0K999999 898253T27 84-816608Q71 33-816336Q .045
350 Mag. EFI Ski 350/ V-8 Delco - HEI 1994 - 1996 0F215561 - 0F820706 806673T 1 84-816608Q68 33-898264001 .035
350 Mag. EFI Ski (Gen+) 350/ V-8 Delco - HEI 1996 - 1997 0F820707 - 0K999999 898253T27 84-816608Q68 33-816336Q .045
350 Mag. MPI (Gen+) 350/ V-8 Delco - HEI 1998 0L010019 - 0L325952 898253T27 84-816608Q71 33-816336Q .045
350 Mag. MPI (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L325953 - 0M299999 300-8M0079202 84-816608Q83 33-816336Q .045
158 Telephone Order and Assistance, (905) 636-4749; Fax (800) 217-6517
