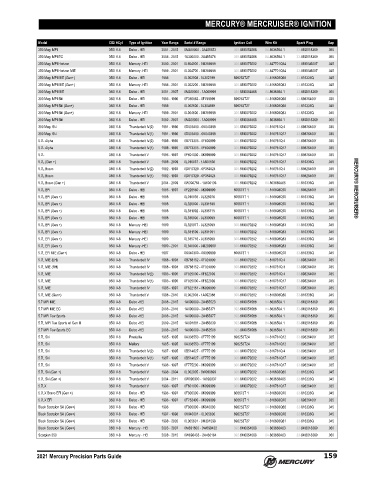

Page 168 - Canada Parts Guide (2021) - 8M0174475

MERCURY® MERCRUISER® IGNITION

Model CID/ #Cyl Type of Ignition Year Range Serial # Range Ignition Coil Wire Kit Spark Plug Gap
350 Mag. MPI 350/ V-8 Delco - HEI 2001 - 2015 0M300000 - 2A455872 392-8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI EC 350/ V-8 Delco - HEI 2008 - 2015 1A300000 - 2A455878 392-8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Horizon 350/ V-8 Mercury -HEI 2000 - 2001 0L604000 - 0M299999 300-8M0079202 84-847701Q24 33-8M0046007 .045
350 Mag. MPI Horizon MIE 350/ V-8 Mercury -HEI 1999 - 2001 0L304700 - 0M299999 300-8M0079202 84-847701Q24 33-8M0046007 .045
350 Mag. MPI MIE (Gen+) 350/ V-8 Delco - HEI 1998 0L002008 - 0L302199 898253T27 84-816608Q68 33-816336Q .045
350 Mag. MPI MIE (Gen+) 350/ V-8 Mercury -HEI 1998 - 2001 0L302200 - 0M299999 300-8M0079202 84-816608Q83 33-816336Q .045
350 Mag. MPI MIE 350/ V-8 Delco - HEI 2001 - 2007 0M300000 - 1A089999 392-8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. MPI Ski 350/ V-8 Delco - HEI 1995 - 1996 0F350583 - 0F799999 898253T27 84-816608Q68 33-898264001 .035
350 Mag. MPI Ski (Gen+) 350/ V-8 Delco - HEI 1998 0L002600 - 0L304599 898253T27 84-816608Q68 33-816336Q .045
350 Mag. MPI Ski (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L304600 - 0M299999 300-8M0079202 84-816608Q83 33-816336Q .045
350 Mag. MPI Ski 350/ V-8 Delco - HEI 2002 - 2007 0M300000 - 1A089999 392-8M0054588 84-863656A 1 33-8M2018369 .060
350 Mag. Ski 350/ V-8 Thunderbolt IV(2) 1991 - 1996 0D505450 - 0K040399 300-8M0079202 84-816761Q 4 33-898264001 .035
350 Mag. Ski 350/ V-8 Thunderbolt IV(1) 1991 - 1996 0D505450 - 0K040399 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L Alpha 350/ V-8 Thunderbolt IV(2) 1988 - 1995 0B773305 - 0F600999 300-8M0079202 84-816761Q 4 33-898264001 .035
5.7L Alpha 350/ V-8 Thunderbolt IV(1) 1988 - 1995 0B773305 - 0F600999 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L 350/ V-8 Thunderbolt V 1996 - 1997 0F601000 - 0K999999 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L (Gen +) 350/ V-8 Thunderbolt V 1998 - 2009 0L010037 - 1A600136 300-8M0079202 84-816761Q17 33-816336Q .045
5.7L Bravo 350/ V-8 Thunderbolt IV(2) 1992 - 1993 0D617328 - 0F353524 300-8M0079202 84-816761Q 4 33-898264001 .035
5.7L Bravo 350/ V-8 Thunderbolt IV(1) 1992 - 1993 0D617328 - 0F353524 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L Bravo (Gen +) 350/ V-8 Thunderbolt V 2004 - 2009 0W300754 - 1A600136 300-8M0079202 84-863656A05 33-816336Q .045
5.7L EFI 350/ V-8 Delco - HEI 1995 - 1997 0F225560 - 0K999999 806673T 1 84-816608Q70 33-898264001 .035 MERCURY® MERCRUISER®
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L010035 - 0L325976 806673T 1 84-816608Q70 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L326000 - 0L331598 806673T 1 84-816608Q70 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L331992 - 0L335715 806673T 1 84-816608Q70 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Delco - HEI 1998 0L336000 - 0L339999 806673T 1 84-816608Q70 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L325977 - 0L325999 300-8M0079202 84-816608Q83 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L331599 - 0L331991 300-8M0079202 84-816608Q83 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 0L335716 - 0L335999 300-8M0079202 84-816608Q83 33-816336Q .045
5.7L EFI (Gen +) 350/ V-8 Mercury -HEI 1999 - 2001 0L340000 - 0M299999 300-8M0079202 84-816608Q83 33-816336Q .045
5.7L EFI MIE (Gen+) 350/ V-8 Delco - HEI 1997 0K040300 - 0K999999 806673T 1 84-816608Q70 33-816336Q .045
5.7L MIE (LH) 350/ V-8 Thunderbolt IV 1988 - 1993 0B788152 - 0F024999 300-8M0079202 84-816761Q 4 33-898264001 .035
5.7L MIE (RH) 350/ V-8 Thunderbolt IV 1988 - 1993 0B788152 - 0F024999 300-8M0079202 84-816761Q 3 33-898264001 .035
5.7L MIE 350/ V-8 Thunderbolt IV(2) 1993 - 1995 0F025000 - 0F622099 300-8M0079202 84-816761Q 4 33-898264001 .035
5.7L MIE 350/ V-8 Thunderbolt IV(1) 1993 - 1995 0F025000 - 0F622099 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L MIE 350/ V-8 Thunderbolt IV 1995 - 1997 0F622151 - 0K999999 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L MIE (Gen+) 350/ V-8 Thunderbolt V 1998 - 2010 0L002003 - 1A092388 300-8M0079202 84-816608Q80 33-816336Q .045
5.7 MPI MIE 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455523 392-8M0054588 84-863656A 1 33-8M2018369 .060
5.7 MPI MIE EC 350/ V-8 Delco -HEI 2008 - 2016 1A090000 - 2A455371 392-8M0054588 84-863656A 1 33-8M2018369 .060
5.7 MPI Tow Sports 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455977 392-8M0054588 84-863656A 1 33-8M2018369 .060
5.7L MPI Tow Sports w/ Gen III 350/ V-8 Delco -HEI 2009 - 2015 1A091881 - 2A456039 392-8M0054588 84-863656A 1 33-8M2018369 .060
5.7 MPI Tow Sports EC 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A452508 392-8M0054588 84-863656A 1 33-8M2018369 .060
5.7L Ski 350/ V-8 Prestolite 1985 - 1995 0A338553 - 0F775199 898253T24 84-816761Q12 33-898264001 .035
5.7L Ski 350/ V-8 Mallory 1985 - 1995 0A338553 - 0F775199 898253T24 84-816761Q12 33-898264001 .035
5.7L Ski 350/ V-8 Thunderbolt IV(2) 1987 - 1995 0B514627 - 0F775199 300-8M0079202 84-816761Q 4 33-898264001 .035
5.7L Ski 350/ V-8 Thunderbolt IV(1) 1987 - 1995 0B514627 - 0F775199 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L Ski 350/ V-8 Thunderbolt V 1996 - 1997 0F775200 - 0K999999 300-8M0079202 84-816761Q17 33-898264001 .035
5.7L Ski (Gen +) 350/ V-8 Thunderbolt V 1998 - 2004 0L002005 - 0W090899 300-8M0079202 84-816608Q80 33-816336Q .045
5.7L Ski (Gen +) 350/ V-8 Thunderbolt V 2004 - 2011 0W090900 - 1A092837 300-8M0079202 84-863656A05 33-816336Q .045
5.7LX 350/ V-8 Thunderbolt V 1996 - 1997 0F601000 - 0K999999 300-8M0079202 84-816761Q17 33-898264001 .035
5.7LX Bravo EFI (Gen +) 350/ V-8 Delco - HEI 1996 - 1997 0F800300 - 0K999999 806673T 1 84-816608Q70 33-816336Q .045
5.7LX EFI 350/ V-8 Delco - HEI 1996 - 1997 0F752400 - 0K999999 806673T 1 84-816608Q70 33-898264001 .035
Black Scorpion Ski (Gen+) 350/ V-8 Delco - HEI 1996 0F800000 - 0K040000 898253T27 84-816608Q68 33-816336Q .045
Black Scorpion Ski (Gen+) 350/ V-8 Delco - HEI 1997 - 1998 0K040001 - 0L005600 898253T27 84-816608Q78 33-816336Q .045
Black Scorpion Ski (Gen+) 350/ V-8 Delco - HEI 1998 - 2002 0L005601 - 0M391599 898253T27 84-816608Q81 33-816336Q .045
Black Scorpion Ski (Gen+) 350/ V-8 Mercury - HEI 2003 - 2007 0M391600 - 0W698432 392-8M0054588 84-863656A03 33-8M2018369 .060
Scorpion 350 350/ V-8 Mercury - HEI 2008 - 2015 0W698433 - 2A460164 392-8M0054588 84-863656A03 33-8M2018369 .060

2021 Mercury Precision Parts Guide 159
