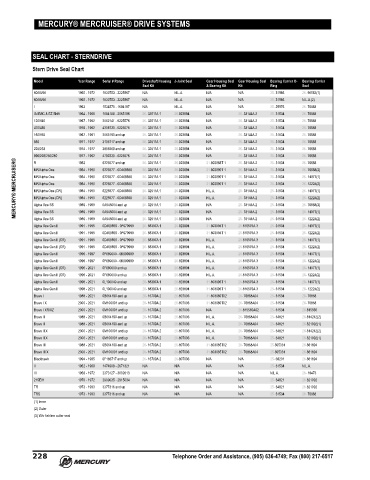

MERCURY® MERCRUISER® DRIVE SYSTEMS

SEAL CHART - STERNDRIVE

Stern Drive Seal Chart
Model Year Range Serial # Range Driveshaft Housing J-Joint Seal Gear Housing Seal Gear Housing Seal Bearing Carrier O- Bearing Carrier
Seal Kit & Bearing Kit Kit Ring Seal
60/80/90 1965 - 1972 1830753 - 3225967 N/A N.L.A. N/A N/A 25- 31986 26- 90562(1)
60/80/90 1965 - 1972 1830753 - 3225967 N/A N.L.A. N/A N/A 25- 31986 N.L.A.(2)
I 1963 1534570 - 1684187 N/A N.L.A. N/A N/A 25- 29976 26- 76868
IA/IB/IC & EZ Shift 1964 - 1966 1684188 - 2065186 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
120/140 1967 - 1982 2062141 - 6225576 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
470/485 1976 - 1982 4208730 - 6225575 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
160/165 1967 - 1981 2065190 and up 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
888 1971 - 1977 3106717 and up 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
225/233 1974 - 1977 3856268 and up 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
26- 32511A 1
898/228/250/260 1977 - 1982 4782330 - 6225576 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 76868
MERCURY® MERCRUISER® MR/Alpha One 1984 - 1990 6225577 - 0D469858 26- 32511A 1 26-823894 31-803090T 1 26- 33144A 2 25- 31534 26- 14077(1)
26-823894
26- 76868
25- 31534
31-803068T 1
1983
26- 33144A 2
6225577 and up
R
31-803090T 1
MR/Alpha One
26- 33144A 2
6225577 - 0D469858
25- 31534
26-823894
26- 76868(3)
1984 - 1990
26- 32511A 1
26- 32511A 1
6225577 - 0D469858
1984 - 1990
31-803090T 1
MR/Alpha One
26- 33144A 2
25- 31534
26-823894
26- 12224(2)
26- 32511A 1
MR/Alpha One (CR)
26-823894
26- 33144A 2
1984 - 1990
26- 14077(1)
N.L.A.
26- 32511A 1
6225577 - 0D469858
25- 31534
6225577 - 0D469858
26-823894
26- 32511A 1
1984 - 1990
25- 31534
MR/Alpha One (CR)
26- 33144A 2
N.L.A.
26- 12224(2)
Alpha One SS
26- 76868(3)
25- 31534
0A545004 and up
1986 - 1989
26-823894
26- 33144A 2
N/A
Alpha One SS
26- 12224(2)
N/A
26-823894
25- 31534
26- 33144A 2
0A545004 and up
1986 - 1989
Alpha One SS
26- 32511A 1
26-816575A 3
Alpha One Gen II 1986 - 1989 0A545004 and up 26- 32511A 1 26-823894 N/A 26- 33144A 2 25- 31534 26- 14077(1)
25- 31534
31-803094T 1
26-823894
0D469859 - 0F679999
26- 14077(1)
1991 - 1995
26- 88397A 1
Alpha One Gen II 1991 - 1995 0D469859 - 0F679999 26- 88397A 1 26-823894 31-803094T 1 26-816575A 3 25- 31534 26- 12224(2)
Alpha One Gen II (CR) 1991 - 1995 0D469859 - 0F679999 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 14077(1)
Alpha One Gen II (CR) 1991 - 1995 0D469859 - 0F679999 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 12224(2)
Alpha One Gen II 1996 - 1997 0F680000 - 0K999999 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 14077(1)
Alpha One Gen II 1996 - 1997 0F680000 - 0K999999 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 12224(2)
Alpha One Gen II (CR) 1996 - 2021 0F680000 and up 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 14077(1)
Alpha One Gen II (CR) 1996 - 2021 0F680000 and up 26- 88397A 1 26-823894 N.L.A. 26-816575A 3 25- 31534 26- 12224(2)
Alpha One Gen II 1998 - 2021 0L100040 and up 26- 88397A 1 26-823894 31-803096T 1 26-816575A 3 25- 31534 26- 14077(1)
Alpha One Gen II 1998 - 2021 0L100040 and up 26- 88397A 1 26-823894 31-803096T 1 26-816575A 3 25- 31534 26- 12224(2)
Bravo I 1988 - 2021 0B664190 and up 26- 16709A 2 26-807006 31-803080T02 26- 76868A04 25- 31534 26- 76868
Bravo I X 2000 - 2021 0M100001 and up 26- 16709A 2 26-807006 31-803080T02 26- 76868A04 25- 31534 26- 76868
Bravo I XR/XZ 2000 - 2021 0M100001 and up 26- 16709A 2 26-807006 N/A 26-815565A02 25- 31534 26-815565
Bravo II 1988 - 2021 0B664190 and up 26- 16709A 2 26-807006 N.L.A. 26- 76868A04 25- 34821 26-814242(2)
Bravo II 1988 - 2021 0B664190 and up 26- 16709A 2 26-807006 N.L.A. 26- 76868A04 25- 34821 26-821092(1)
Bravo II X 2000 - 2021 0M100001 and up 26- 16709A 2 26-807006 N.L.A. 26- 76868A04 25- 34821 26-814242(2)
Bravo II X 2000 - 2021 0M100001 and up 26- 16709A 2 26-807006 N.L.A. 26- 76868A04 25- 34821 26-821092(1)
Bravo III 1988 - 2021 0B664190 and up 26- 16709A 2 26-807006 31-803085T02 26- 76868A04 25-805331 26-861694
Bravo III X 2000 - 2021 0M100001 and up 26- 16709A 2 26-807006 31-803085T02 26- 76868A04 25-805331 26-861694
Blackhawk 1994 - 1995 0F186717 and up 26- 16709A 2 26-807006 N/A N/A 25- 69201 26-861694
II 1962 - 1969 1474909 - 2671321 N/A N/A N/A N/A 25- 31534 N.L.A.
III 1968 - 1972 2373127 - 3002613 N/A N/A N/A N/A N.L.A. 26- 19473
215E/H 1970 - 1972 2909035 - 2915034 N/A N/A N/A N/A 25- 34821 26-821092
TR 1973 - 1993 3377316 and up N/A N/A N/A N/A 25- 34821 26-821092
TRS 1973 - 1993 3377316 and up N/A N/A N/A N/A 25- 31534 26- 76868
(1) Inner
(2) Outer
(3) W/o fishline cutter seal
