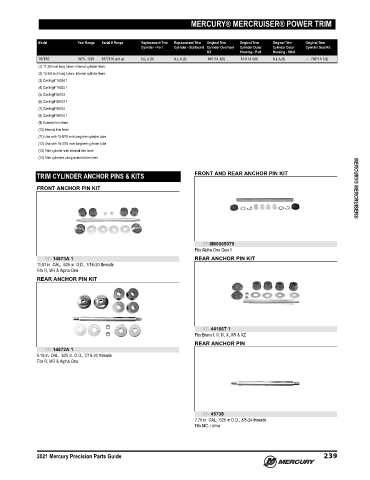

MERCURY® MERCRUISER® POWER TRIM

Model Year Range Serial # Range Replacement Trim Replacement Trim Original Trim Original Trim Original Trim Original Trim
Cylinder - Port Cylinder - Starboard Cylinder Overhaul Cylinder Outer Cylinder Outer Cylinder Seal Kit
Kit Housing - Port Housing - Stbd.
TR/TRS 1973 - 1993 3377316 and up N.L.A.(9) N.L.A.(9) 86611A 1(9) 87411A 6(9) N.L.A.(9) 25- 79871A 1(9)
(1) 11-3/8 inch long tubes- internal cylinder lines
(2) 13-3/4 inch long tubes- internal cylinder lines
(3) Casting# 14034 1
(4) Casting# 14035 1
(5) Casting# 98703
(6) Casting# 98703 1
(7) Casting# 98704
(8) Casting# 98704 1
(9) External trim lines
(10) Internal trim lines
(11) Use with 15-9/16 inch long trim cylinder tube
(12) Use with 16-3/16 inch long trim cylinder tube
(13) Trim cylinder with internal trim lines
(14) Trim cylinders using external trim lines

TRIM CYLINDER ANCHOR PINS & KITS FRONT AND REAR ANCHOR PIN KIT
FRONT ANCHOR PIN KIT MERCURY® MERCRUISER®

17-8M0065070
Fits Alpha One Gen II
17- 14873A 1 REAR ANCHOR PIN KIT
11.87 in. OAL, .625 in. O.D., 7/16‑20 threads
Fits R, MR & Alpha One
REAR ANCHOR PIN KIT

17- 44166T 1
Fits Bravo I, II, III, X, XR & XZ
REAR ANCHOR PIN
17- 14872A 1
9.18 in. OAL, .625 in. O.D., 7/16‑20 threads
Fits R, MR & Alpha One

17- 45738
7.75 in. OAL, .625 in O.D., 3/8‑24 threads
Fits MC‑I drive
