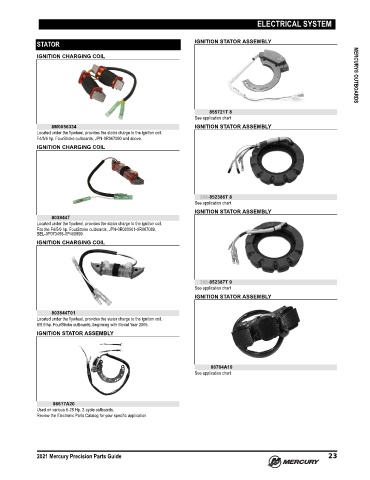

P. 32
ELECTRICAL SYSTEM
STATOR IGNITION STATOR ASSEMBLY
IGNITION CHARGING COIL MERCURY® OUTBOARDS
855721T 8
See application chart
8M0056334 IGNITION STATOR ASSEMBLY
Located under the flywheel, provides the stator charge to the ignition coil.
F4/5/6 hp. FourStroke outboards, JPN‑0R067090 and above.
IGNITION CHARGING COIL
398-852386T 8
See application chart
IGNITION STATOR ASSEMBLY
803844T
Located under the flywheel, provides the stator charge to the ignition coil.
Fits the F4/5/6 hp. FourStroke outboards, JPN‑0R000001‑0R067089,
BEL‑0P073456‑0P400999.
IGNITION CHARGING COIL
398-852387T 9
See application chart
IGNITION STATOR ASSEMBLY
803844T01
Located under the flywheel, provides the stator charge to the ignition coil.
8/9.9 hp. FourStroke outboards, beginning with Model Year 2005.
IGNITION STATOR ASSEMBLY
86704A10
See application chart
86617A20
Used on various 6‑25 Hp. 2‑cycle outboards.
Review the Electronic Parts Catalog for your specific application.
2021 Mercury Precision Parts Guide 23
