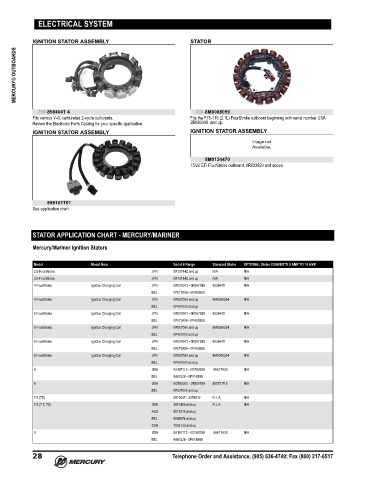

Page 37 - Canada Parts Guide (2021) - 8M0174475
P. 37
ELECTRICAL SYSTEM
IGNITION STATOR ASSEMBLY STATOR
MERCURY® OUTBOARDS
398-858404T 4 300-8M0088059
Fits various V‑6, carbureted 2‑cycle outboards. Fits the F75‑115 (2.1L) FourStroke outboard beginning with serial number USA
Review the Electronic Parts Catalog for your specific application. 2B095049 and up.
IGNITION STATOR ASSEMBLY IGNITION STATOR ASSEMBLY
8M0134470
15/20 EFI FourStroke outboard, 0R833820 and above.
898101T01
See application chart
STATOR APPLICATION CHART - MERCURY/MARINER
Mercury/Mariner Ignition Stators
Model Model Note Serial # Range Standard Stator OPTIONAL Stator CONVERTS 9 AMP TO 16 AMP
2.5 FourStroke JPN 0R131842 and up N/A N/A
3.5 FourStroke JPN 0R131842 and up N/A N/A
4 FourStroke Ignition Charging Coil JPN 0R000001 - 0R067089 803844T N/A
BEL 0P073456 - 0P400999
4 FourStroke Ignition Charging Coil JPN 0R067090 and up 8M0056334 N/A
BEL 0P401000 and up
5 FourStroke Ignition Charging Coil JPN 0R000001 - 0R067089 803844T N/A
BEL 0P073456 - 0P400999
5 FourStroke Ignition Charging Coil JPN 0R067090 and up 8M0056334 N/A
BEL 0P401000 and up
6 FourStroke Ignition Charging Coil JPN 0R000001 - 0R067089 803844T N/A
BEL 0P073456 - 0P400999
6 FourStroke Ignition Charging Coil JPN 0R067090 and up 8M0056334 N/A
BEL 0P401000 and up
6 USA 0A197112 - 0G760299 86617A20 N/A
BEL 9461526 - 0P016999
6 USA 0G760300 - 0T800749 855721T 8 N/A
BEL 0P017000 and up
7.5 (75) 2810637 - 3274632 N.L.A. N/A
7.5 (7.5, 75) USA 3801458 and up N.L.A. N/A
AUS 8015315 and up
BEL 9068874 and up
CAN 7043133 and up
8 USA 0A197112 - 0G760299 86617A20 N/A
BEL 9461526 - 0P016999
