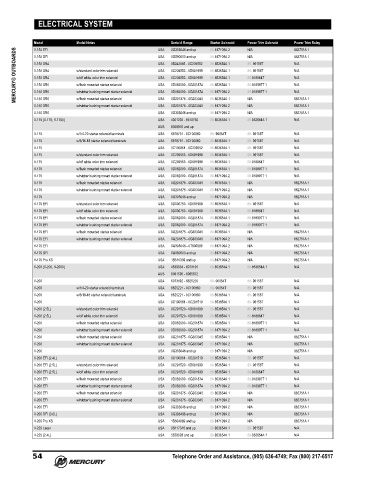

Page 63 - Canada Parts Guide (2021) - 8M0174475

ELECTRICAL SYSTEM

Model Model Notes USA Serial # Range Starter Solenoid Power Trim Solenoid Power Trim Relay
N/A

882751A 1
0G303046 and up
89-817109A 2
MERCURY® OUTBOARDS V-150 XR4 w/standard color trim solenoid USA 0B242885 - 0C239552 89-853654A 1 89- 96158T N/A
V-150 EFI
N/A
89-817109A 2
882751A 1
0G590000 and up
USA

V-150 DFI
USA
0C239553 - 0D081999
V-150 XR4
N/A
89-853654A 1
89- 96158T
USA
w/off white color trim solenoid
V-150 XR4
0C239553 - 0D081999
N/A
89-818864T
89-853654A 1
V-150 XR6
89-853654A 1
N/A
89-818997T 1
USA
0D082000 - 0G201874
w/flush mounted starter solenoid
V-150 XR6
89-853654A 1
USA
882751A 1
0G201875 - 0G303045
N/A
w/flush mounted starter solenoid
V-150 XR6
89-817109A 2
V-150 XR6 w/rubber bushing mount starter solenoid USA 0D082000 - 0G201874 89-817109A 2 89-818997T 1 N/A
w/rubber bushing mount starter solenoid
0G201875 - 0G303045
USA
N/A
882751A 1
V-150 XR6 USA 0G303046 and up 89-817109A 2 N/A 882751A 1
V-175 (V-175, V-1750) USA 4301235 - 6618750 89-853654A 1 89-853654A 1 N/A
AUS 8058870 and up
V-175 w/1/4-20 starter solenoid terminals USA 6618751 - 0C100860 89- 96054T 89- 96158T N/A
V-175 w/5/16-18 starter solenoid terminals USA 6618751 - 0C100860 89-853654A 1 89- 96158T N/A
V-175 USA 0C100861 - 0C239552 89-853654A 1 89- 96158T N/A
V-175 w/standard color trim solenoid USA 0C239553 - 0D081999 89-853654A 1 89- 96158T N/A
V-175 w/off white color trim solenoid USA 0C239553 - 0D081999 89-853654A 1 89-818864T N/A
V-175 w/flush mounted starter solenoid USA 0D082000 - 0G201874 89-853654A 1 89-818997T 1 N/A
V-175 w/rubber bushing mount starter solenoid USA 0D082000 - 0G201874 89-817109A 2 89-818997T 1 N/A
V-175 w/flush mounted starter solenoid USA 0G201875 - 0G303045 89-853654A 1 N/A 882751A 1
V-175 w/rubber bushing mount starter solenoid USA 0G201875 - 0G303045 89-817109A 2 N/A 882751A 1
V-175 USA 0G303046 and up 89-817109A 2 N/A 882751A 1
V-175 EFI w/standard color trim solenoid USA 0D000750 - 0D081999 89-853654A 1 89- 96158T N/A
V-175 EFI w/off white color trim solenoid USA 0D000750 - 0D081999 89-853654A 1 89-818864T N/A
V-175 EFI w/flush mounted starter solenoid USA 0D082000 - 0G201874 89-853654A 1 89-818997T 1 N/A
V-175 EFI w/rubber bushing mount starter solenoid USA 0D082000 - 0G201874 89-817109A 2 89-818997T 1 N/A
V-175 EFI w/flush mounted starter solenoid USA 0G201875 - 0G303045 89-853654A 1 N/A 882751A 1
V-175 EFI w/rubber bushing mount starter solenoid USA 0G201875 - 0G303045 89-817109A 2 N/A 882751A 1
V-175 EFI USA 0G303046 - 0T800999 89-817109A 2 N/A 882751A 1
V-175 DFI USA 0G960500 and up 89-817109A 2 N/A 882751A 1
V-175 Pro XS USA 1B516339 and up 89-817109A 2 N/A 882751A 1
V-200 (V-200, V-2000) USA 4839034 - 6073191 89-853654A 1 89-853654A 1 N/A
AUS 8061595 - 8065672
V-200 USA 6073192 - 6625220 89- 96054T 89- 96158T N/A
V-200 w/1/4-20 starter solenoid terminals USA 6625221 - 0C100860 89- 96054T 89- 96158T N/A
V-200 w/5/16-18 starter solenoid terminals USA 6625221 - 0C100860 89-853654A 1 89- 96158T N/A
V-200 USA 0C100861 - 0C291519 89-853654A 1 89- 96158T N/A
V-200 (2.5L) w/standard color trim solenoid USA 0C291520 - 0D081999 89-853654A 1 89- 96158T N/A
V-200 (2.5L) w/off white color trim solenoid USA 0C291520 - 0D081999 89-853654A 1 89-818864T N/A
V-200 w/flush mounted starter solenoid USA 0D082000 - 0G201874 89-853654A 1 89-818997T 1 N/A
V-200 w/rubber bushing mount starter solenoid USA 0D082000 - 0G201874 89-817109A 2 89-818997T 1 N/A
V-200 w/flush mounted starter solenoid USA 0G201875 - 0G303045 89-853654A 1 N/A 882751A 1
V-200 w/rubber bushing mount starter solenoid USA 0G201875 - 0G303045 89-817109A 2 N/A 882751A 1
V-200 USA 0G303046 and up 89-817109A 2 N/A 882751A 1
V-200 EFI (2.4L) USA 0C100861 - 0C291519 89-853654A 1 89- 96158T N/A
V-200 EFI (2.5L) w/standard color trim solenoid USA 0C291520 - 0D081999 89-853654A 1 89- 96158T N/A
V-200 EFI (2.5L) w/off white color trim solenoid USA 0C291520 - 0D081999 89-853654A 1 89-818864T N/A
V-200 EFI w/flush mounted starter solenoid USA 0D082000 - 0G201874 89-853654A 1 89-818997T 1 N/A
V-200 EFI w/rubber bushing mount starter solenoid USA 0D082000 - 0G201874 89-817109A 2 89-818997T 1 N/A
V-200 EFI w/flush mounted starter solenoid USA 0G201875 - 0G303045 89-853654A 1 N/A 882751A 1
V-200 EFI w/rubber bushing mount starter solenoid USA 0G201875 - 0G303045 89-817109A 2 N/A 882751A 1
V-200 EFI USA 0G303046 and up 89-817109A 2 N/A 882751A 1
V-200 DFI (3.0L) USA 0G386496 and up 89-817109A 2 N/A 882751A 1
V-200 Pro XS USA 1B504989 and up 89-817109A 2 N/A 882751A 1
V-220 Laser USA 0B117316 and up 89-853654A 1 89- 96158T N/A
V-225 (2.4L) USA 5628028 and up 89-853654A 1 89-853654A 1 N/A
54 Telephone Order and Assistance, (905) 636-4749; Fax (800) 217-6517
