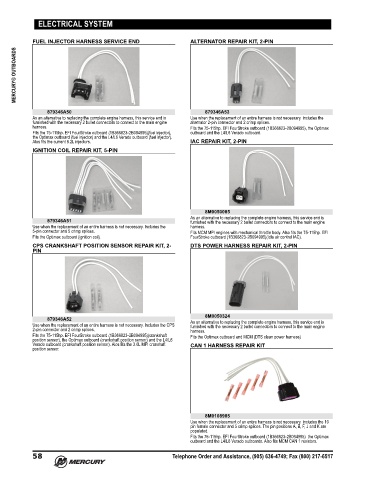

Page 67 - Canada Parts Guide (2021) - 8M0174475

ELECTRICAL SYSTEM

FUEL INJECTOR HARNESS SERVICE END ALTERNATOR REPAIR KIT, 2-PIN
MERCURY® OUTBOARDS

879346A50 879346A53
As an alternative to replacing the complete engine harness, this service end is Use when the replacement of an entire harness is not necessary. Includes the
furnished with the necessary 2 bullet connectors to connect to the main engine alternator 2‑pin connector and 2 crimp splices.
harness. Fits the 75‑115hp. EFI FourStroke outboard (1B366823‑2B094995), the Optimax
Fits the 75‑115hp. EFI FourStroke outboard (1B366823‑2B094995)(fuel injector), outboard and the L4/L6 Verado outboard.
the Optimax outboard (fuel injector) and the L4/L6 Verado outboard (fuel injector).
Alos fits the current 8.2L injectors. IAC REPAIR KIT, 2-PIN
IGNITION COIL REPAIR KIT, 5-PIN

8M0050085
As an alternative to replacing the complete engine harness, this service end is
879346A51 furnished with the necessary 2 bullet connectors to connect to the main engine
Use when the replacement of an entire harness is not necessary. Includes the harness.
5‑pin connector and 5 crimp splices. Fits MCM MPI engines with mechanical throttle body. Also fits the 75‑115hp. EFI
Fits the Optimax outboard (ignition coil). FourStroke outboard (1B366823‑2B094995)(Idle air control IAC).
CPS CRANKSHAFT POSITION SENSOR REPAIR KIT, 2- DTS POWER HARNESS REPAIR KIT, 2-PIN
PIN

8M0050324
879346A52
Use when the replacement of an entire harness is not necessary. Includes the CPS As an alternative to replacing the complete engine harness, this service end is
furnished with the necessary 2 bullet connectors to connect to the main engine
2‑pin connector and 2 crimp splices. harness.
Fits the 75‑115hp. EFI FourStroke outboard (1B366823‑2B094995)(crankshaft Fits the Optimax outboard and MCM (DTS clean power harness)
position sensor), the Optimax outboard (crankshaft position sensor) and the L4/L6
Verado outboard (crankshaft position sensor). Alos fits the 3.0L MPI cranshaft CAN 1 HARNESS REPAIR KIT
position sensor.

8M0108985
Use when the replacement of an entire harness is not necessary. Includes the 10
pin female connector and 5 crimp splices. The pin positions A, B, F, J and K are
populated.
Fits the 75‑115hp. EFI FourStroke outboard (1B366823‑2B094995) the Optimax
outboard and the L4/L6 Verado outboards. Also fits MCM CAN 1 resistors.
