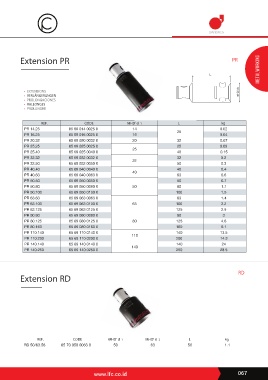

Page 23 - LFC Catalogue metalworking

metalworking
Extension PR PR

• EXTENSIONS
• VERLÄNGERUNGEN
• PROLONGACIONES
• RALLONGES
• PROLUNGHE

REF. CODE MHD’ d 1 L kg
PR 14.25 65 69 014 0025 0 14 25 0.02
PR 16.25 65 69 016 0025 0 16 0.04
PR 20.32 65 69 020 0032 0 20 32 0.07
PR 25.25 65 69 025 0025 0 25 25 0.09
PR 25.40 65 69 025 0040 0 40 0.15
PR 32.32 65 69 032 0032 0 32 0.2
PR 32.50 65 69 032 0050 0 32 50 0.3
PR 40.40 65 69 040 0040 0 40 40 0.4
PR 40.63 65 69 040 0063 0 63 0.6
PR 50.50 65 69 050 0050 0 50 0.7
PR 50.80 65 69 050 0080 0 50 80 1.1
PR 50.100 65 69 050 0100 0 100 1.5
PR 63.63 65 69 063 0063 0 63 1.4
PR 63.100 65 69 063 0100 0 63 100 2.2
PR 63.125 65 69 063 0125 0 125 2.9
PR 80.80 65 69 080 0080 0 80 3
PR 80.125 65 69 080 0125 0 80 125 4.6
PR 80.160 65 69 080 0160 0 160 6.1
PR 110.140 65 69 110 0140 0 140 13.5
110
PR 110.200 65 69 110 0200 0 200 14.3
PR 140.140 65 69 140 0140 0 140 140 24
PR 140.250 65 69 140 0250 0 250 28.5

RD
Extension RD

REF. CODE MHD’ d 1 MHD’ d 2 L kg
RD 50/63.56 65 70 050 0063 0 50 63 56 1.1

www.lfc.co.id 067
