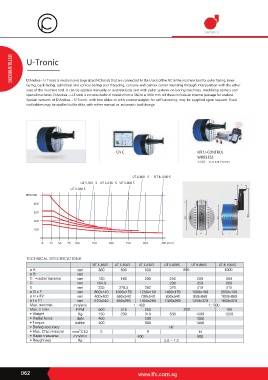

Page 18 - LFC Catalogue metalworking

U-Tronic

D’Andrea – U-Tronic is medium and large sized NC heads that are connected to the U axis of the NC in the machine tool for outer facing, inner
metalworking
facing, back-facing, cylindrical and conical boring and threading, concave and convex corner rounding through interpolation with the other
axes of the machine tool. It can be applied manually or automatically and with pallet systems on boring machines, machining centers and
special machines. D’Andrea – U-Tronic is constructed in 6 models from ø 360 to ø 1000 mm. All these include an internal passage for coolant.
Special versions of D’Andrea – U-Tronic, with two slides or with counterweights for self-balancing, may be supplied upon request. Fixed
toolholders may be applied to the slide, with either manual or automatic tool change.

CN C KIT U-CONTROL
WIRELESS
C ODE : 55 0 020 100 001

UT 8-800 S UT 8-1000 S
UT 5-500 S UT 5-630 S UT 5-800 S F
UT 3-360 S
RPM 500
400 C
300
Ø G
Ø A Ø B
200
100
D E

0 25 50 75 100 150 200 250 300 350 mm C

TECHNICAL SPECIFICATIONS
UT 3-360S UT 5-500S UT 5-630S UT 5-800S UT 8-800S UT 8-1000S
ø A mm 360 500 630 800 1000
ø B mm
C • radial traverse mm 120 160 200 250 280 350
D mm 154.6 230 250 260
E mm 235 278.5 282 370 410 415
ø G x F mm 800x140 1000x150 1250x150 1400x150 1600x160 2000x160
ø H x F2 mm 400x400 560x540 700x540 830x540 850x860 1050x860
ø I c F1 mm 670x240 850x295 1050x295 1300x295 1250x370 1600x370
Max. mm/min mm/min 1 : 400 1 : 500
Max. /min RPM 500 315 250 200 160
• Weight Kg 130 230 310 530 1000 1200
• Radial force daN 400 500 1000
• Torque daNm 400 800 1000
• Boring accuracy H7
2
• Max. Chip removal mm C40 5 9 14
• Rapid trasverse mm/min 400 500
• Roughness Ra 0.8 ~ 1.2
