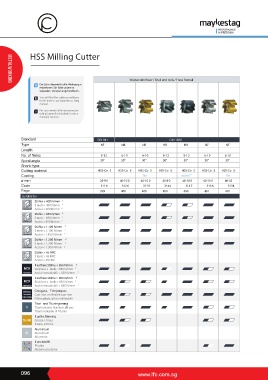

Page 52 - LFC Catalogue metalworking

HSS Milling Cutter

Walzenstirnfräser / Shell end mills / Frese frontali
Die Schn ittwerte für alle Werkzeug e
metalworking
entnehmen Sie bitte unsere m
separaten Zerspan ungshandbuch .
You will find the cutting conditions
for all tools in our separate cu tting
manual.
Per i pa rametri di lavorazione per
tutti gli utensili richie dete il nostr o
manuale tecnico.

Standard DIN 841 DIN 1880
Type NF NR NR HR HR NF NF
Length
No. of flutes 5-12 6-10 6-10 8-12 8-12 6-10 6-10
Spiral angle 30° 30° 30° 30° 30° 30° 30°
Shank type
Cutting material HSS-Co 5 HSS-Co 5 HSS-Co 5 HSS-Co 5 HSS-Co 5 HSS-Co 5 HSS-Co 5
Coating TiN ALUNI T ® TiN
ø mm 35-9 0 40-10 0 40-10 0 40-8 0 40-10 0 40-10 0 40-63
Code 3116 3126 3128 3146 3147 3136 3138
Page 399 400 400 400 400 401 401
Suitable for
Stähle < 400 N/mm 2
S teels < 400 N/mm 2
Acciai < 400 N/mm 2
Stähle < 850 N/mm 2
S teels < 850 N/mm 2
<850 N/mm 2 Acciai < 850 N/mm 2
Stähle < 1.100 N/mm 2
S teels < 1.100 N/mm 2
<1100 N/mm 2 Acciai < 1.100 N/mm 2
Stähle < 1.300 N/mm 2
S teels < 1.300 N/mm 2
<1300 N/mm 2 Acciai < 1.300 N/mm 2
Stähle > 45 HRC
S teels > 45 HRC
>45 HRC Acciai > 45 HRC
R ostfreie Stähle < 850 N/mm 2
Stainless s teels < 850 N/mm 2
Acciai inossidabili < 850 N/mm 2
R ostfreie Stähle > 850 N/mm 2
Stainless s teels > 850 N/mm 2
Acciai inossidabili > 850 N/mm 2
Grauguss, Temperguss
Cast iron, malleable cast iron
Ghisa grigia, ghisa malleabile
Titan- und Titanlegierung
Titanium and titanium all oys
Titanio e leghe di Titanio
Kupfer, Messing
Coppe r, brass
R ame, ot tone
Aluminium
Aluminium
Alluminio
Kunststoe
Plastics
Materie plastiche
