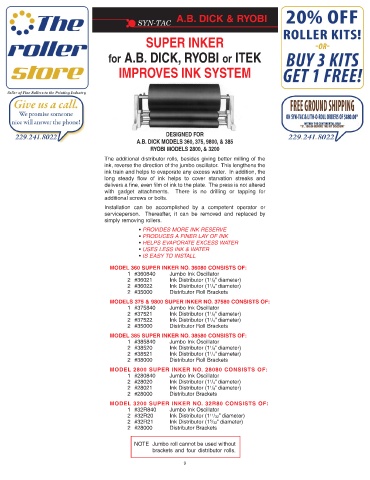

Page 11 - Syn-Tac Roller Catalog #23

A.B. DICK & RYOBI
SYN-TAC

SUPER INKER

for A.B. DICK, RYOBI or ITEK

IMPROVES INK SYSTEM

DESIGNED FOR
A.B. DICK MODELS 360, 375, 9800, & 385
RYOBI MODELS 2800, & 3200
The additional distributor rolls, besides giving better milling of the
ink, reverse the direction of the jumbo oscillator. This lengthens the
ink train and helps to evaporate any excess water. In addition, the
long steady flow of ink helps to cover starvation streaks and
delivers a fine, even film of ink to the plate. The press is not altered
with gadget attachments. There is no drilling or tapping for
additional screws or bolts.
Installation can be accomplished by a competent operator or
serviceperson. Thereafter, it can be removed and replaced by
simply removing rollers.
• PROVIDES MORE INK RESERVE
• PRODUCES A FINER LAY OF INK
• HELPS EVAPORATE EXCESS WATER
• USES LESS INK & WATER
• IS EASY TO INSTALL

MODEL 360 SUPER INKER NO. 36080 CONSISTS OF:
1 #360840 Jumbo Ink Oscillator
2 #36021 Ink Distributor (1 /8” diameter)
1
1
2 #36022 Ink Distributor (1 /4” diameter)
2 #35000 Distributor Roll Brackets
MODELS 375 & 9800 SUPER INKER NO. 37580 CONSISTS OF:
1 #375840 Jumbo Ink Oscillator
1
2 #37521 Ink Distributor (1 /8” diameter)
2 #37522 Ink Distributor (1 /4” diameter)
1
2 #35000 Distributor Roll Brackets
MODEL 385 SUPER INKER NO. 38580 CONSISTS OF:
1 #385840 Jumbo Ink Oscillator
2 #38520 Ink Distributor (1 /8” diameter)
1
1
2 #38521 Ink Distributor (1 /4” diameter)
2 #38000 Distributor Roll Brackets
MODEL 2800 SUPER INKER NO. 28080 CONSISTS OF:
1 #280840 Jumbo Ink Oscillator
1
2 #28020 Ink Distributor (1 /4” diameter)
2 #28021 Ink Distributor (1 /8” diameter)
1
2 #28000 Distributor Brackets
MODEL 3200 SUPER INKER NO. 32R80 CONSISTS OF:
1 #32R840 Jumbo Ink Oscillator
11
2 #32R20 Ink Distributor (1 /32” diameter)
5
2 #32R21 Ink Distributor (1 /32” diameter)
2 #28000 Distributor Brackets
NOTE Jumbo roll cannot be used without
brackets and four distributor rolls.
