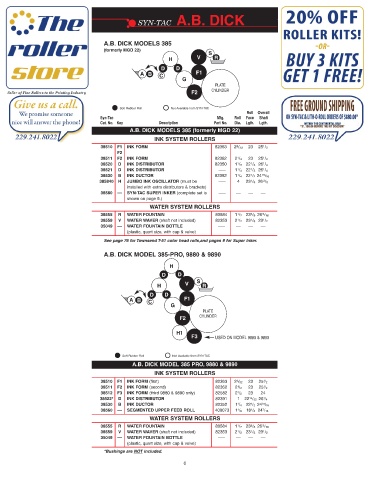

Page 8 - Syn-Tac Roller Catalog #23

SYN-TAC A.B. DICK

A.B. DICK MODELS 385
(formerly MGD 22)
S
H V R
D D
A B C F1
G
PLATE
CYLINDER
F2

Soft Rubber Roll Not Available from SYN-TAC
Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
A.B. DICK MODELS 385 (formerly MGD 22)
INK SYSTEM ROLLERS
38510 F1 INK FORM 82363 2 3 /32 23 25 1 /2
F2
38511 F2 INK FORM 82362 2 1 / 2 23 25 1 /2
38520 D INK DISTRIBUTOR 82350 1 1 /8 22 1 /2 26 1 /4
38521 D INK DISTRIBUTOR ––– 1 1 /4 22 1 /2 26 1 /4
38530 B INK DUCTOR 82352 1 1 /4 22 1 /2 24 15 / 16
385840 H JUMBO INK OSCILLATOR (must be ––– 4 23 1 /8 26 3 /8
installed with extra distributors & brackets)
38580 –– SYN-TAC SUPER INKER (complete set is ––– –– –– ––
shown on page 9.)
WATER SYSTEM ROLLERS
38555 R WATER FOUNTAIN 80584 1 1 /2 23 5 /8 26 5 / 16
38559 V WATER WAVER (shaft not included) 82353 2 1 /2 23 1 /8 23 1 /2
35049 –– WATER FOUNTAIN BOTTLE ––– –– –– ––
(plastic, quart size, with cap & valve)
See page 76 for Townsend T-51 color head rolls,and pages 9 for Super Inker.

A.B. DICK MODEL 385-PRO, 9880 & 9890
H
D D
S
H V R
D D
A B C F1
G
PLATE
CYLINDER
F2
H1
F3 USED ON MODEL 9880 & 9890

Soft Rubber Roll Not Available from SYN-TAC
A.B. DICK MODEL 385 PRO, 9880 & 9890
INK SYSTEM ROLLERS
38510 F1 INK FORM (first) 82363 2 3 /32 23 25 1 /2
38511 F2 INK FORM (second) 82362 2 1 / 2 23 25 1 /2
38512 F3 INK FORM (third 9880 & 9890 only) 82582 2 1 /8 23 24
38522* D INK DISTRIBUTOR 82391 1 22 15 / 32 26 1 /4
38530 B INK DUCTOR 82352 1 1 /4 22 1 / 2 24 15 / 16
38560 –– SEGMENTED UPPER FEED ROLL 400073 1 1 /8 18 1 /8 24 7 /16
WATER SYSTEM ROLLERS
38555 R WATER FOUNTAIN 80584 1 1 /2 23 5 /8 26 5 / 16
38559 V WATER WAVER (shaft not included) 82353 2 1 /2 23 1 /8 23 1 /2
35049 –– WATER FOUNTAIN BOTTLE ––– –– –– ––
(plastic, quart size, with cap & valve)
*Bushings are NOT included.
6
