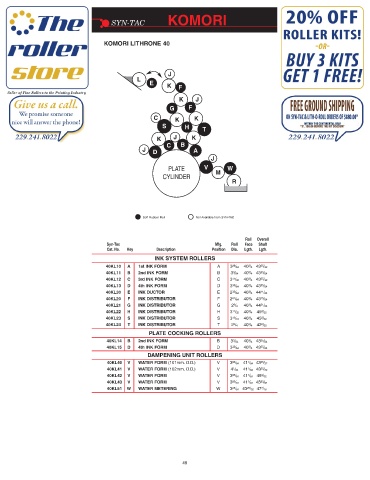

Page 50 - Syn-Tac Roller Catalog #23

SYN-TAC KOMORI

KOMORI LITHRONE 40

J
L
E
K F
K J
G F
C K K
S H
T
K J K
C B
J A
D
J
PLATE V W
M
CYLINDER
R

Soft Rubber Roll Not Available from SYN-TAC

Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Position Dia. Lgth. Lgth.
INK SYSTEM ROLLERS
40KL10 A 1st INK FORM A 3 29 / 64 40 3 / 4 43 25 / 32
40KL11 B 2nd INK FORM B 3 3 / 64 40 3 / 4 43 55 / 64
40KL12 C 3rd INK FORM C 3 11 / 32 40 3 / 4 43 25 / 32
40KL13 D 4th INK FORM D 3 35 / 64 40 3 / 4 43 55 / 64
40KL30 E INK DUCTOR E 2 33 / 64 40 3 / 4 44 11 / 64
40KL20 F INK DISTRIBUTOR F 2 61 / 64 40 3 / 4 43 15 / 64
40KL21 G INK DISTRIBUTOR G 2 3 / 4 40 3 / 4 44 21 / 64
40KL22 H INK DISTRIBUTOR H 3 11 / 32 40 3 / 4 45 5 / 32
40KL23 S INK DISTRIBUTOR S 3 13 / 16 40 3 / 4 45 5 / 32
40KL24 T INK DISTRIBUTOR T 2 3 / 4 40 3 / 4 42 9 / 32
PLATE COCKING ROLLERS
40KL14 B 2nd INK FORM B 3 3 / 64 40 3 / 4 43 25 / 64
40KL15 D 4th INK FORM D 3 35 / 64 40 3 / 4 43 25 / 64
DAMPENING UNIT ROLLERS
40KL40 V WATER FORM (101mm. O.D.) V 3 63 / 64 41 1 / 64 43 25 / 32
40KL41 V WATER FORM (102mm. O.D.) V 4 1 / 64 41 1 / 64 43 25 / 32
40KL42 V WATER FORM V 3 63 / 64 41 1 / 64 45 9 / 32
40KL43 V WATER FORM V 3 63 / 64 41 1 / 64 45 63 / 64
40KL51 W WATER METERING W 3 25 / 64 43 25 / 32 47 7 / 16
