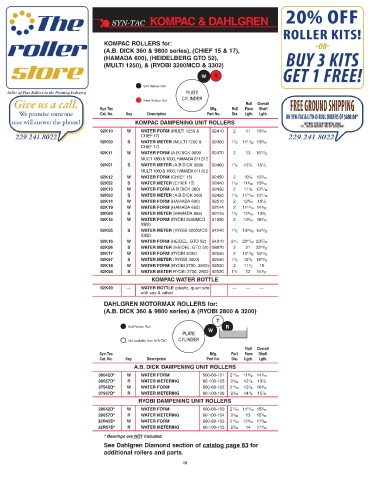

Page 51 - Syn-Tac Roller Catalog #23

SYN-TAC KOMPAC & DAHLGREN

KOMPAC ROLLERS for:
(A.B. DICK 360 & 9800 series), (CHIEF 15 & 17),
(HAMADA 600), (HEIDELBERG GTO 52),
(MULTI 1250), & (RYOBI 3200MCD & 3302)
W S

Soft Rubber Roll
PLATE
CYLINDER
Hard Rubber Roll
Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
KOMPAC DAMPENING UNIT ROLLERS
92K10 W WATER FORM (MULTI 1250 & 92410 2 11 13 9 / 16
CHIEF 17)
92K50 S WATER METER (MULTI 1250 & 92400 1 1 / 2 11 17 / 32 13 9 / 16
CHIEF 17)
92K11 W WATER FORM (A.B.DICK 9800 92470 2 13 15 17 / 32
MULTI 1360 & 1650, HAMADA 611,612
92K51 S WATER METER (A.B.DICK 9800 92460 1 1 / 2 13 1 / 2 15 1 / 2
MULTI 1360 & 1650, HAMADA 611,612
92K12 W WATER FORM (CHIEF 15) 92450 2 10 5 / 8 13 3 / 16
92K52 S WATER METER (CHIEF 15) 92440 1 1 / 2 11 5 / 32 13 3 / 16
92K13 W WATER FORM (A.B.DICK 360) 92430 2 11 1 / 8 13 11 / 16
92K53 S WATER METER (A.B.DICK 360) 92420 1 1 / 2 11 21 / 32 13 11 / 16
92K14 W WATER FORM (HAMADA 600) 92510 2 12 9 / 16 15 1 / 8
92K19 W WATER FORM (HAMADA 665) 92144 2 11 13 / 16 14 1 / 32
92K59 S WATER METER (HAMADA 665) 92145 1 1 / 2 12 5 / 16 13 5 / 8
92K15 W WATER FORM (RYOBI 3200MCD 91900 2 13 5 / 16 16 3 / 16
3302)
92K55 S WATER METER (RYOBI 3200MCD 94240 1 1 / 2 13 23 / 32 15 25 / 32
3302)
92K16 W WATER FORM (HEIDEL. GTO 52) 94810 2 1 /4 20 15 / 32 23 27 / 32
92K56 S WATER METER (HEIDEL. GTO 52) 98870 2 21 22 19 / 32
92K17 W WATER FORM (RYOBI 3200) 92550 2 12 11 / 32 15 27 / 32
92K57 S WATER METER (RYOBI 3200) 92540 1 1 / 2 12 7 / 8 14 29 / 32
92K18 W WATER FORM (RYOBI 2700, 2800) 92530 2 11 1 / 2 15
92K58 S WATER METER RYOBI 2700, 2800 92520 1 1 / 2 12 14 1 / 32
KOMPAC WATER BOTTLE
92K49 — WATER BOTTLE (plastic, quart size — — —
with cap & valve)
DAHLGREN MOTORMAX ROLLERS for:
(A.B. DICK 360 & 9800 series) & (RYOBI 2800 & 3200)
T
Soft Rubber Roll R
W
PLATE
Not Available from SYN-TAC CYLINDER
Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
A.B. DICK DAMPENING UNIT ROLLERS
36042D* W WATER FORM 600-80-101 2 11 / 16 11 9 / 32 14 1 / 16
36057D* R WATER METERING 60-100-105 2 3 / 32 12 1 / 8 13 7 / 8
37542D* W WATER FORM 600-80-102 2 11 / 16 13 1 / 8 16 1 / 16
37557D* R WATER METERING 60-100-106 2 3 / 32 14 1 / 8 15 7 / 8
RYOBI DAMPENING UNIT ROLLERS
28042D* W WATER FORM 600-80-100 2 11 / 16 11 15 / 32 15 5 / 32
28057D* R WATER METERING 60-100-104 2 3 / 32 13 15 1 / 32
32R42D* W WATER FORM 600-80-103 2 11 / 16 12 9 / 16 17 5 / 32
32R57D* R WATER METERING 60-100-103 2 3 / 32 14 17 1 / 32
* Bearings are NOT included.
See Dahlgren Diamond section of catalog page 83 for
additional rollers and parts.
