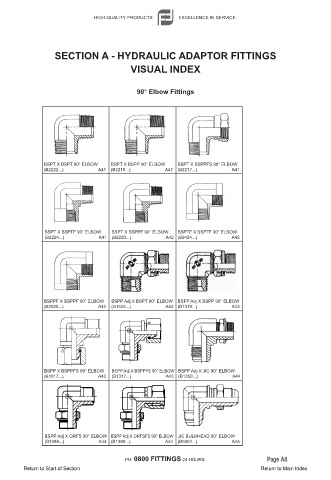

SECTION A - HYDRAULIC ADAPTOR FITTINGS
CMYK:
Grey Black RGB:
VISUAL INDEX Red Black
C: 0
C: 0

M: 0
R: 0
R: 75
M: 0

Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
90° Elbow Fittings
BSPT X BSPT 90° ELBOW BSPT X BSPP 90° ELBOW BSPT X BSPPFS 90° ELBOW
(B2222...) A41 (B2210...) A41 (B2217...) A41
BSPT X BSPTF 90° ELBOW BSPT X BSPPF 90° ELBOW BSPTF X BSPTF 90° ELBOW
(B2224...) A41 (B2220...) A42 (B2424...) A42
BSPPF X BSPPF 90° ELBOW BSPP Adj X BSPT 90° ELBOW BSPP Adj X BSPP 90° ELBOW
(B2020...) A42 (B1322...) A42 (B1310...) A43

BSPP X BSPPFS 90° ELBOW BSPP Adj X BSPPFS 90° ELBOW BSPP Adj X JIC 90° ELBOW
(B1017...) A43 (B1317...) A43 (B1350...) A44

BSPP Adj X ORFS 90° ELBOW BSPP Adj X ORFSFS 90° ELBOW JIC BULKHEAD 90° ELBOW
(B1388...) A44 (B1389...) A44 (B5051...) A45

PH: 0800 FITTINGS 24 HOURS. Page A8
Return to Start of Section Return to Main Index
