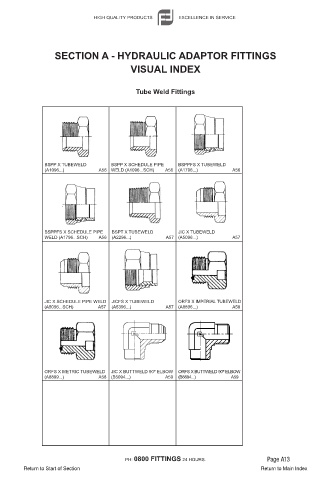

SECTION A - HYDRAULIC ADAPTOR FITTINGS
CMYK:
Grey Black RGB:
VISUAL INDEX Red Black
C: 0
C: 0

M: 0
R: 0
R: 75
M: 0
Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
Tube Weld Fittings
BSPP X TUBEWELD BSPP X SCHEDULE PIPE BSPPFS X TUBEWELD
(A1096...) A56 WELD (A1096...SCH) A56 (A1796...) A56
BSPPFS X SCHEDULE PIPE BSPT X TUBEWELD JIC X TUBEWELD
WELD (A1796...SCH) A56 (A2296...) A57 (A5096...) A57

JIC X SCHEDULE PIPE WELD JICFS X TUBEWELD ORFS X IMPERIAL TUBEWELD
(A5096...SCH) A57 (A5396...) A57 (A8896...) A58

ORFS X METRIC TUBEWELD JIC X BUTTWELD 90° ELBOW ORFS X BUTTWELD 90° ELBOW
(A8899...) A58 (B5094...) A59 (B8894...) A59
