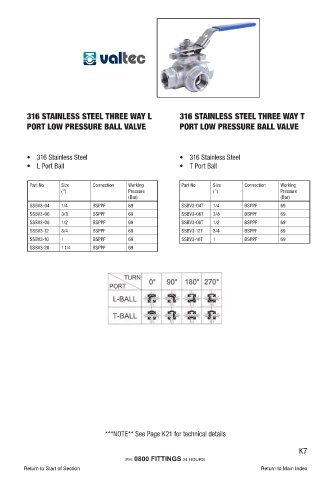

316 STAINLESS STEEL THREE WAY L 316 STAINLESS STEEL THREE WAY T

PORT LOW PRESSURE BALL VALVE PORT LOW PRESSURE BALL VALVE

• 316 Stainless Steel • 316 Stainless Steel
• L Port Ball • T Port Ball

Part No Size Connection Working Part No Size Connection Working
(“) Pressure (“) Pressure
(Bar) (Bar)
SSBV3-04 1/4 BSPPF 69 SSBV3-04T 1/4 BSPPF 69
SSBV3-06 3/8 BSPPF 69 SSBV3-06T 3/8 BSPPF 69
SSBV3-08 1/2 BSPPF 69 SSBV3-08T 1/2 BSPPF 69
SSBV3-12 3/4 BSPPF 69 SSBV3-12T 3/4 BSPPF 69
SSBV3-16 1 BSPPF 69 SSBV3-16T 1 BSPPF 69
SSBV3-20 1.1/4 BSPPF 69

***NOTE** See Page K21 for technical details

K7
