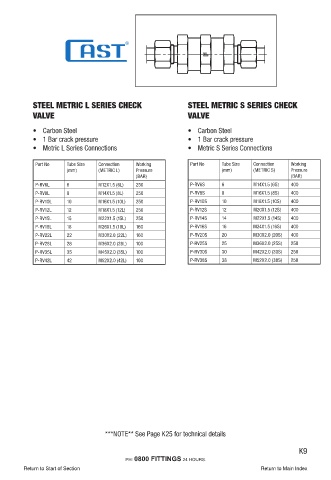

STEEL METRIC L SERIES CHECK STEEL METRIC S SERIES CHECK
VALVE VALVE

• Carbon Steel • Carbon Steel
• 1 Bar crack pressure • 1 Bar crack pressure
• Metric L Series Connections • Metric S Series Connections

Part No Tube Size Connection Working Part No Tube Size Connection Working
(mm) (METRIC L) Pressure (mm) (METRIC S) Pressure
(BAR) (BAR)
P-RV6L 6 M12X1.5 (6L) 250 P-RV6S 6 M14X1.5 (6S) 400
P-RV8L 8 M14X1.5 (8L) 250 P-RV8S 8 M16X1.5 (8S) 400
P-RV10L 10 M16X1.5 (10L) 250 P-RV10S 10 M18X1.5 (10S) 400
P-RV12L 12 M18X1.5 (12L) 250 P-RV12S 12 M20X1.5 (12S) 400
P-RV15L 15 M22X1.5 (15L) 250 P-RV14S 14 M22X1.5 (14S) 400
P-RV18L 18 M26X1.5 (18L) 160 P-RV16S 16 M24X1.5 (16S) 400
P-RV22L 22 M30X2.0 (22L) 160 P-RV20S 20 M30X2.0 (20S) 400
P-RV28L 28 M36X2.0 (28L) 100 P-RV25S 25 M36X2.0 (25S) 250
P-RV35L 35 M45X2.0 (35L) 100 P-RV30S 30 M42X2.0 (30S) 250
P-RV42L 42 M52X2.0 (42L) 100 P-RV38S 38 M52X2.0 (38S) 250

***NOTE** See Page K25 for technical details

K9
