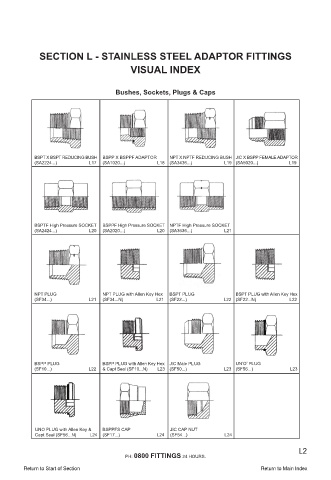

SECTION L - STAINLESS STEEL ADAPTOR FITTINGS
VISUAL INDEX
Bushes, Sockets, Plugs & Caps
BSPT X BSPT REDUCING BUSH BSPP X BSPPF ADAPTOR NPT X NPTF REDUCING BUSH JIC X BSPP FEMALE ADAPTOR
(SA2224...) L17 (SA1020...) L18 (SA3436...) L19 (SA5020...) L19
BSPTF High Pressure SOCKET BSPPF High Pressure SOCKET NPTF High Pressure SOCKET
(SA2424...) L20 (SA2020...) L20 (SA3636...) L21
NPT PLUG NPT PLUG with Allen Key Hex BSPT PLUG BSPT PLUG with Allen Key Hex
(SF34...) L21 (SF34...N) L21 (SF22...) L22 (SF22...N) L22
BSPP PLUG BSPP PLUG with Allen Key Hex JIC Male PLUG UN‘O’ PLUG
(SF10...) L22 & Capt Seal (SF10...N) L23 (SF50...) L23 (SF56...) L23
UNO PLUG with Allen Key & BSPPFS CAP JIC CAP NUT
Capt Seal (SF56...N) L24 (SF17...) L24 (SF54...) L24
L2
