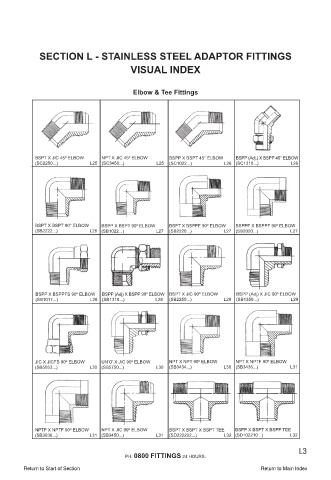

SECTION L - STAINLESS STEEL ADAPTOR FITTINGS

VISUAL INDEX

Elbow & Tee Fittings

BSPT X JIC 45º ELBOW NPT X JIC 45º ELBOW BSPP X BSPT 45° ELBOW BSPP (Adj.) X BSPP 45° ELBOW
(SC2250...) L25 (SC3450...) L25 (SC1022...) L26 (SC1310...) L26

BSPT X BSPT 90° ELBOW BSPP X BSPT 90º ELBOW BSPT X BSPPF 90º ELBOW BSPPF X BSPPF 90º ELBOW
(SB2222...) L26 (SB1022...) L27 (SB2220...) L27 (SB2020...) L27

BSPP X BSPPFS 90º ELBOW BSPP (Adj) X BSPP 90º ELBOW BSPT X JIC 90º ELBOW BSPP (Adj) X JIC 90º ELBOW
(SB1017...) L28 (SB1310...) L28 (SB2250...) L29 (SB1350...) L29

JIC X JICFS 90º ELBOW UN‘O’ X JIC 90º ELBOW NPT X NPT 90º ELBOW NPT X NPTF 90º ELBOW
(SB5053...) L30 (SB5750...) L30 (SB3434...) L30 (SB3436...) L31

NPTF X NPTF 90º ELBOW NPT X JIC 90º ELBOW BSPT X BSPT X BSPT TEE BSPP X BSPT X BSPP TEE
(SB3636...) L31 (SB3450...) L31 (SD222222...) L32 (SD102210...) L32
