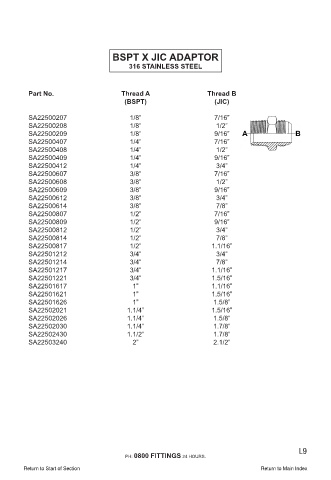

BSPT X JIC ADAPTOR
316 STAINLESS STEEL

Part No. Thread A Thread B
(BSPT) (JIC)

SA22500207 1/8” 7/16”
SA22500208 1/8” 1/2”
SA22500209 1/8” 9/16”
SA22500407 1/4” 7/16”
SA22500408 1/4” 1/2”
SA22500409 1/4” 9/16”
SA22500412 1/4” 3/4”
SA22500607 3/8” 7/16”
SA22500608 3/8” 1/2”
SA22500609 3/8” 9/16”
SA22500612 3/8” 3/4”
SA22500614 3/8” 7/8”
SA22500807 1/2” 7/16”
SA22500809 1/2” 9/16”
SA22500812 1/2” 3/4”
SA22500814 1/2” 7/8”
SA22500817 1/2” 1.1/16”
SA22501212 3/4” 3/4”
SA22501214 3/4” 7/8”
SA22501217 3/4” 1.1/16”
SA22501221 3/4” 1.5/16”
SA22501617 1” 1.1/16”
SA22501621 1” 1.5/16”
SA22501626 1” 1.5/8”
SA22502021 1.1/4” 1.5/16”
SA22502026 1.1/4” 1.5/8”
SA22502030 1.1/4” 1.7/8”
SA22502430 1.1/2” 1.7/8”
SA22503240 2” 2.1/2”
