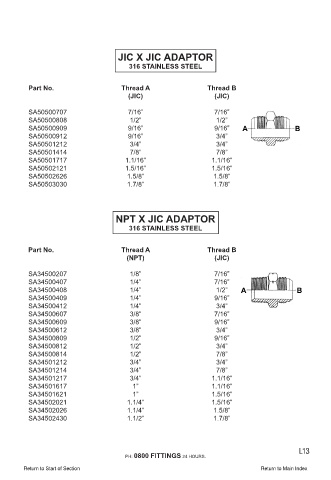

Page 249 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

JIC X JIC ADAPTOR
316 STAINLESS STEEL

Part No. Thread A Thread B
(JIC) (JIC)

SA50500707 7/16” 7/16”
SA50500808 1/2” 1/2”
SA50500909 9/16” 9/16”
SA50500912 9/16” 3/4”
SA50501212 3/4” 3/4”
SA50501414 7/8” 7/8”
SA50501717 1.1/16” 1.1/16”
SA50502121 1.5/16” 1.5/16”
SA50502626 1.5/8” 1.5/8”
SA50503030 1.7/8” 1.7/8”

NPT X JIC ADAPTOR

316 STAINLESS STEEL

Part No. Thread A Thread B
(NPT) (JIC)

SA34500207 1/8” 7/16”
SA34500407 1/4” 7/16”
SA34500408 1/4” 1/2”
SA34500409 1/4” 9/16”
SA34500412 1/4” 3/4”
SA34500607 3/8” 7/16”
SA34500609 3/8” 9/16”
SA34500612 3/8” 3/4”
SA34500809 1/2” 9/16”
SA34500812 1/2” 3/4”
SA34500814 1/2” 7/8”
SA34501212 3/4” 3/4”
SA34501214 3/4” 7/8”
SA34501217 3/4” 1.1/16”
SA34501617 1” 1.1/16”
SA34501621 1” 1.5/16”
SA34502021 1.1/4” 1.5/16”
SA34502026 1.1/4” 1.5/8”
SA34502430 1.1/2” 1.7/8”

PH: 0800 FITTINGS 24 HOURS. L9
PAGE A9 L13
