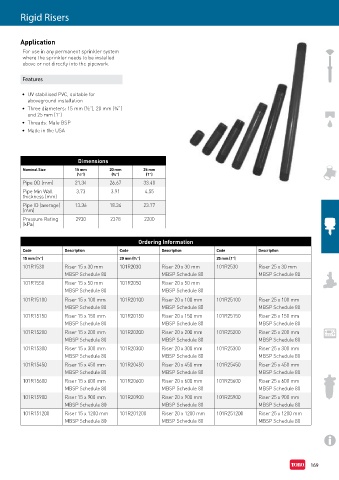

Rigid Risers

Application

For use in any permanent sprinkler system
where the sprinkler needs to be installed
above or not directly into the pipework.

Features

• UV stabilised PVC, suitable for
aboveground installation
• Three diameters: 15 mm (½”), 20 mm (¾”)
and 25 mm (1”)
• Threads: Male BSP
• Made in the USA

Dimensions

Nominal Size 15 mm 20 mm 25 mm
(½”) (¾”) (1”)
Pipe OD (mm) 21.34 26.67 33.40
Pipe Min Wall 3.73 3.91 4.55
thickness (mm)
Pipe ID (average) 13.36 18.34 23.77
(mm)
Pressure Rating 2930 2378 2200
(kPa)

Ordering Information
Code Description Code Description Code Description
15 mm (½”) 20 mm (¾”) 25 mm (1”)
101R1530 Riser 15 x 30 mm 101R2030 Riser 20 x 30 mm 101R2530 Riser 25 x 30 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R1550 Riser 15 x 50 mm 101R2050 Riser 20 x 50 mm
MBSP Schedule 80 MBSP Schedule 80
101R15100 Riser 15 x 100 mm 101R20100 Riser 20 x 100 mm 101R25100 Riser 25 x 100 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15150 Riser 15 x 150 mm 101R20150 Riser 20 x 150 mm 101R25150 Riser 25 x 150 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15200 Riser 15 x 200 mm 101R20200 Riser 20 x 200 mm 101R25200 Riser 25 x 200 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15300 Riser 15 x 300 mm 101R20300 Riser 20 x 300 mm 101R25300 Riser 25 x 300 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15450 Riser 15 x 450 mm 101R20450 Riser 20 x 450 mm 101R25450 Riser 25 x 450 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15600 Riser 15 x 600 mm 101R20600 Riser 20 x 600 mm 101R25600 Riser 25 x 600 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R15900 Riser 15 x 900 mm 101R20900 Riser 20 x 900 mm 101R25900 Riser 25 x 900 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
101R151200 Riser 15 x 1200 mm 101R201200 Riser 20 x 1200 mm 101R251200 Riser 25 x 1200 mm
MBSP Schedule 80 MBSP Schedule 80 MBSP Schedule 80
