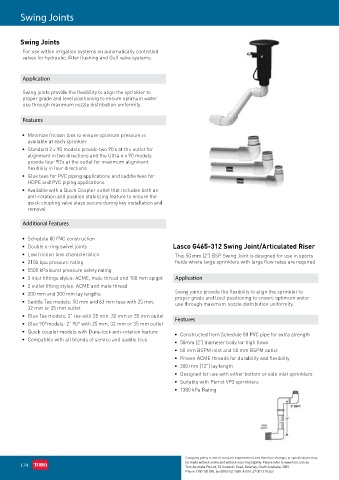

Swing Joints

Swing Joints

For use within irrigation systems on automatically controlled
valves for hydraulic, filter flushing and Gulf valve systems.

Application

Swing joints provide the flexibility to align the sprinkler to
proper grade and level positioning to ensure optimum water
use through maximum nozzle distribution uniformity.

Features

• Minimize friction loss to ensure optimum pressure is
available at each sprinkler
• Standard 2 x 90 models provide two 90’s at the outlet for
alignment in two directions and the Ultra 4 x 90 models
provide four 90’s at the outlet for maximum alignment
flexibility in four directions
• Glue tees for PVC piping applications and saddle tees for
HDPE and PVC piping applications
• Available with a Quick Coupler outlet that includes both an
anti-rotation and position stabilizing feature to ensure the
quick coupling valve stays secure during key installation and
removal

Additional Features

• Schedule 80 PVC construction
• Double o-ring swivel joints Lasco G465-312 Swing Joint/Articulated Riser
• Low friction loss characteristics This 50 mm (2”) BSP Swing Joint is designed for use in sports
• 2100 kpa pressure rating fields where large sprinklers with large flow rates are required.
• 5500 kPa burst pressure safety rating
• 3 inlet fittings styles: ACME, male thread and 100 mm spigot Application
• 2 outlet fitting styles: ACME and male thread
• 200 mm and 300 mm lay lengths Swing joints provide the flexibility to align the sprinkler to
proper grade and level positioning to ensure optimum water
• Saddle Tee models: 50 mm and 63 mm tees with 25 mm, use through maximum nozzle distribution uniformity.
32 mm or 35 mm outlet
• Glue Tee models: 2” tee with 25 mm, 32 mm or 35 mm outlet Features
• Glue 90°models: 2” 90° with 25 mm, 32 mm or 35 mm outlet
• Quick coupler models with Dura-lock anti-rotation feature • Constructed from Schedule 80 PVC pipe for extra strength
• Compatible with all brands of service and saddle tees
• 50mm (2”) diameter body for high flows
• 50 mm BSPM inlet and 50 mm BSPM outlet
• Proven ACME threads for durability and flexibility
• 300 mm (12”) lay length
• Designed for use with either bottom or side inlet sprinklers
• Suitable with Perrot VP3 sprinklers
• 1380 kPa Rating
