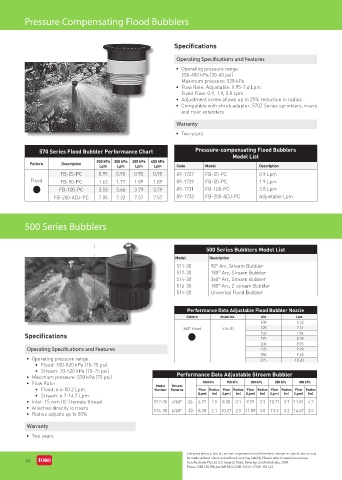

Page 22 - Toro Irrigation Product Catalogue August 2020

Pressure Compensating Flood Bubblers

Specifications

Operating Specifications and Features

• Operating pressure range:
250-400 kPa (30-60 psi)
Maximum pressure: 520 kPa
• Flow Rate: Adjustable: 0.95-7.6 Lpm
Fixed Flow: 0.9, 1.9, 3.8 Lpm
• Adjustment screw allows up to 25% reduction in radius
• Compatible with shrub adapter, 570Z Series sprinklers, risers
and riser extenders

Warranty
• Two years

570 Series Flood Bubbler Performance Chart Pressure-compensating Flood Bubblers
Model List
250 kPa 300 kPa 350 kPa 400 kPa
Pattern Description
Lpm Lpm Lpm Lpm Code Model Description
FB-25-PC 0.95 0.95 0.95 0.95 89-1727 FB-25-PC 0.9 Lpm
Flood FB-50-PC 1.63 1.77 1.89 1.89 89-1729 FB-50-PC 1.9 Lpm
FB-100-PC 3.53 3.66 3.79 3.79 89-1731 FB-100-PC 3.8 Lpm
FB-200-ADJ-PC 7.05 7.32 7.57 7.57 89-1733 FB-200-ADJ-PC Adjustable Lpm

500 Series Bubblers

500 Series Bubblers Model List
Model Description
511-30 90° Arc, Stream Bubbler
512-30 180° Arc, Stream Bubbler
514-30 360° Arc, Stream Bubbler
516-30 180° Arc, 2-stream Bubbler
514-20 Universal Flood Bubbler

Performance Data Adjustable Flood Bubbler Nozzle
Pattern Model No. kPa Lpm
100 6.32
360° Flood 514-20 125 7.14
Specifications 150 7.84
8.38
175
200 8.93
Operating Specifications and Features 225 9.28
250 9.65
• Operating pressure range: 275 10.20
• Flood: 100-520 kPa (15-75 psi)
• Stream: 70-520 kPa (10-75 psi)
• Maximum pressure: 520 kPa (75 psi) Performance Data Adjustable Stream Bubbler
• Flow Rate: Model Stream 100 kPa 150 kPa 200 kPa 250 kPa 300 kPa
• Flood: 6.4-10.2 Lpm Number Patterns Flow Radius Flow Radius Flow Radius Flow Radius Flow Radius
• Stream: 6.7-14.7 Lpm (Lpm) (m) (Lpm) (m) (Lpm) (m) (Lpm) (m) (Lpm) (m)
• Inlet: 15 mm (½”) female thread 512-30 4/60° 6.72 2.5 8.30 3.1 9.59 3.3 10.71 3.7 11.81 4.2
• Attaches directly to risers
• Radius adjusts up to 50% 514-30 6/60° 8.38 2.1 10.27 2.5 11.89 3.0 13.3 3.2 14.67 3.5
Warranty

• Two years

Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
