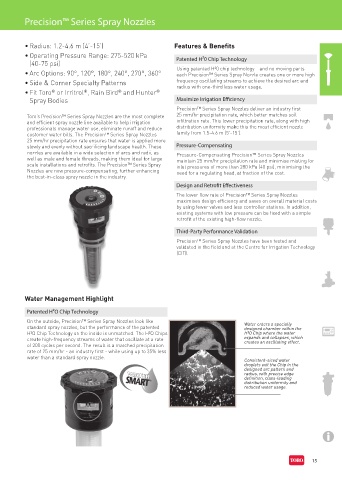

Page 23 - Toro Irrigation Product Catalogue August 2020

Precision™ Series Spray Nozzles

• Radius: 1.2-4.6 m (4’-15’) Features & Benefits

• Operating Pressure Range: 275-520 kPa Patented H²0 Chip Technology
(40-75 psi)
• Arc Options: 90°, 120°, 180°, 240°, 270°, 360° Using patented H²0 chip technology – and no moving parts –
each Precision™ Series Spray Nozzle creates one or more high
• Side & Corner Specialty Patterns frequency oscillating streams to achieve the desired arc and
radius with one-third less water usage.
• Fit Toro or Irritrol , Rain Bird and Hunter
®
®
®
®
Spray Bodies Maximize Irrigation Efficiency
Precision™ Series Spray Nozzles deliver an industry first
Toro’s Precision™ Series Spray Nozzles are the most complete 25 mm/hr precipitation rate, which better matches soil
and efficient spray nozzle line available to help irrigation infiltration rate. This lower precipitation rate, along with high
professionals manage water use, eliminate runoff and reduce distribution uniformity make this the most efficient nozzle
customer water bills. The Precision™ Series Spray Nozzles family from 1.5-4.6 m (5’-15’).
25 mm/hr precipitation rate ensures that water is applied more
slowly and evenly without sacrificing landscape health. These Pressure-Compensating
nozzles are available in a wide selection of arcs and radii, as Pressure-Compensating Precision™ Series Spray Nozzles
well as male and female threads, making them ideal for large maintain 25 mm/hr precipitation rate and minimise misting for
scale installations and retrofits. The Precision™ Series Spray inlet pressures of more than 280 kPa (40 psi), minimising the
Nozzles are now pressure-compensating, further enhancing need for a regulating head, at fraction of the cost.
the best-in-class spray nozzle in the industry.
Design and Retrofit Effectiveness
The lower flow rate of Precision™ Series Spray Nozzles
maximises design efficiency and saves on overall material costs
by using fewer valves and less controller stations. In addition,
existing systems with low pressure can be fixed with a simple
retrofit of the existing high-flow nozzle.

Third-Party Performance Validation
Precision™ Series Spray Nozzles have been tested and
validated in the field and at the Centre for Irrigation Technology
(CIT).

Water Management Highlight

Patented H²O Chip Technology
On the outside, Precision™ Series Spray Nozzles look like
standard spray nozzles, but the performance of the patented Water enters a specially
designed chamber within the
H²O Chip Technology on the inside is unmatched. The H²O Chips H²O Chip where the water
create high-frequency streams of water that oscillate at a rate expands and collapses, which
of 200 cycles per second. The result is a matched precipitation creates an oscillating effect.
rate of 25 mm/hr - an industry first - while using up to 35% less
water than a standard spray nozzle. Consistent-sized water
droplets exit the Chip in the

designed arc pattern and

radius, with precise edge
definition, class-leading
distribution uniformity and
reduced water usage.
