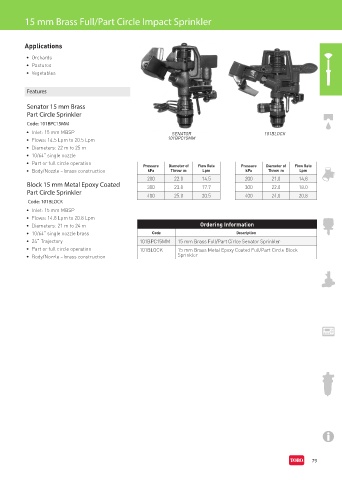

Page 87 - Toro Irrigation Product Catalogue August 2020
P. 87
15 mm Brass Full/Part Circle Impact Sprinkler
Applications
• Orchards
• Pastures
• Vegetables
Features
Senator 15 mm Brass
Part Circle Sprinkler
Code: 101BPC15MM
• Inlet: 15 mm MBSP SENATOR 101BLOCK
• Flows: 14.5 Lpm to 20.5 Lpm 101BPC15MM
• Diameters: 22 m to 25 m
• 10/64” single nozzle
• Part or full circle operation
Pressure Diameter of Flow Rate Pressure Diameter of Flow Rate
• Body/Nozzle – brass construction kPa Throw m Lpm kPa Throw m Lpm
200 22.0 14.5 200 21.0 14.8
Block 15 mm Metal Epoxy Coated 300 23.8 17.7 300 22.0 18.0
Part Circle Sprinkler
400 25.0 20.5 400 24.0 20.8
Code: 101BLOCK
• Inlet: 15 mm MBSP
• Flows: 14.8 Lpm to 20.8 Lpm
• Diameters: 21 m to 24 m Ordering Information
• 10/64” single nozzle brass Code Description
• 24˚ Trajectory 101BPC15MM 15 mm Brass Full/Part Cirlce Senator Sprinkler
• Part or full circle operation 101BLOCK 15 mm Brass Metal Epoxy Coated Full/Part Circle Block
• Body/Nozzle – brass construction Sprinkler
79
