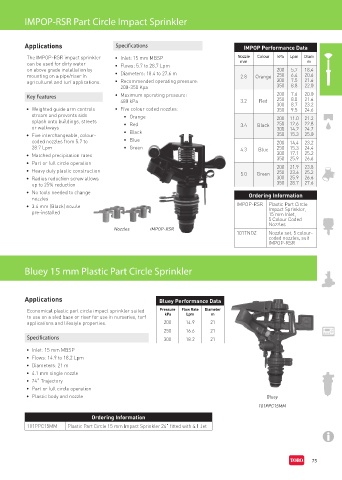

Page 83 - Toro Irrigation Product Catalogue August 2020

IMPOP-RSR Part Circle Impact Sprinkler

Applications Specifications IMPOP Performance Data

The IMPOP-RSR impact sprinkler • Inlet: 15 mm MBSP Nozzle Colour kPa Lpm Diam
can be used for dirty water • Flows: 5.7 to 28.7 Lpm mm m
on above grade installation by 200 5.7 18.4
mounting on a pipe/riser in • Diameters: 18.4 to 27.6 m 2.8 Orange 250 6.4 20.6
agricultural and turf applications. • Recommended operating pressure: 300 7.5 21.6
200-350 Kpa 350 8.8 22.0
Key Features • Maximum operating pressure: 200 7.6 20.0
480 kPa 3.2 Red 250 8.0 21.6
23.2
8.7
300
• Weighted guide arm controls • Five colour coded nozzles: 350 9.5 24.6
stream and prevents side • Orange 200 11.0 21.2
splash onto buildings, streets • Red 250 12.6 22.8
or walkways 3.4 Black 300 14.2 24.2
• Five interchangeable, colour- • Black 350 15.3 25.0
coded nozzles from 5.7 to • Blue 200 14.4 23.2
28.7 Lpm • Green 4.3 Blue 250 15.3 24.4
• Matched precipitation rates 300 17.1 25.2
350
25.9
26.6
• Part or full circle operation 200 21.9 23.8
• Heavy duty plastic construction 5.0 Green 250 23.6 25.2
• Radius reduction screw allows 300 25.9 26.6
up to 25% reduction 350 28.7 27.6
• No tools needed to change Ordering Information
nozzles
• 3.4 mm (Black) nozzle IMPOP-RSR Plastic Part Circle
pre-installed Impact Sprinkler,
15 mm Inlet,
5 Colour Coded
Nozzles
Nozzles IMPOP-RSR
101TNOZ Nozzle set, 5 colour-
coded nozzles, suit
IMPOP-RSR

Bluey 15 mm Plastic Part Circle Sprinkler

Applications Bluey Performance Data

Economical plastic part circle impact sprinkler suited Pressure Flow Rate Diameter
to use on a sled base or riser for use in nurseries, turf kPa Lpm m
applications and lifestyle properties. 200 14.9 21
250 16.6 21
Specifications 300 18.2 21

• Inlet: 15 mm MBSP
• Flows: 14.9 to 18.2 Lpm
• Diameters: 21 m
• 4.1 mm single nozzle
• 24˚ Trajectory
• Part or full circle operation
• Plastic body and nozzle Bluey
101PPC15MM
Ordering Information

101PPC15MM Plastic Part Circle 15 mm Impact Sprinkler 24˚ fitted with 4.1 Jet

75
