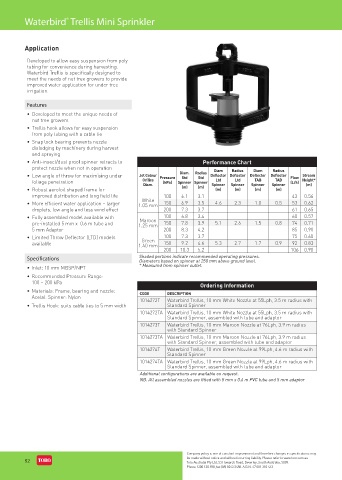

Waterbird Trellis Mini Sprinkler
®

Application

Developed to allow easy suspension from poly
tubing for convenience during harvesting.
Waterbird Trellis is specifically designed to
meet the needs of nut tree growers to provide
improved water application for under tree
irrigation.

Features
• Developed to meet the unique needs of
nut tree growers
• Trellis hook allows for easy suspension
from poly tubing with a cable tie
• Snap lock bearing prevents nozzle
dislodging by machinery during harvest
and spraying
• Anti-insect/dust proof spinner retracts to Performance Chart
protect nozzle when not in operation
Diam. Radius Diam Radius Diam Radius
• Low angle of throw for maximising under Jet Colour Pressure Std Std Deflector Deflector Deflector Deflector Flow Stream
foliage penetration Orifice (kPa) Spinner Spinner Ltd Ltd TAB TAB (L/h) Height*
Diam. Spinner Spinner Spinner Spinner (m)
• Robust aerofoil shaped frame for (m) (m) (m) (m) (m) (m)
improved distribution and long field life 100 6.1 3.1 43 0.56
White
• More efficient water application – larger 1.05 mm 150 6.9 3.5 4.6 2.3 1.0 0.5 53 0.62
droplets, low angle and less wind effect 200 7.3 3.7 61 0.65
• Fully assembled model available with 100 6.8 3.4 60 0.57
Maroon
pre-installed 5 mm x 0.6 m tube and 1.25 mm 150 7.8 3.9 5.1 2.6 1.5 0.8 74 0.71
5 mm Adaptor 200 8.3 4.2 85 0.90
• Limited Throw Deflector (LTD) models 100 7.3 3.7 75 0.60
Green
available 1.40 mm 150 9.2 4.6 5.3 2.7 1.7 0.9 92 0.83
200 10.3 5.2 106 0.90
Specifications Shaded portions indicate recommended operating pressures.
Diameters based on spinner at 250 mm above ground level.
• Inlet: 10 mm MBSP/NPT * Measured from spinner outlet.
• Recommended Pressure Range:
100 – 200 kPa
Ordering Information
• Materials: Frame, bearing and nozzle:
Acetal. Spinner: Nylon CODE DESCRIPTION
1014272T Waterbird Trellis, 10 mm White Nozzle at 55Lph, 3.5 m radius with
• Trellis Hook: suits cable ties to 5 mm width Standard Spinner
1014272TA Waterbird Trellis, 10 mm White Nozzle at 55Lph, 3.5 m radius with
Standard Spinner, assembled with tube and adaptor
1014273T Waterbird Trellis, 10 mm Maroon Nozzle at 76Lph, 3.9 m radius
with Standard Spinner
1014273TA Waterbird Trellis, 10 mm Maroon Nozzle at 76Lph, 3.9 m radius
with Standard Spinner, assembled with tube and adaptor
1014274T Waterbird Trellis, 10 mm Green Nozzle at 99Lph, 4.6 m radius with
Standard Spinner
1014274TA Waterbird Trellis, 10 mm Green Nozzle at 99Lph, 4.6 m radius with
Standard Spinner, assembled with tube and adaptor
Additional configurations are available on request.
NB. All assembled nozzles are fitted with 5 mm x 0.6 m PVC tube and 5 mm adaptor
