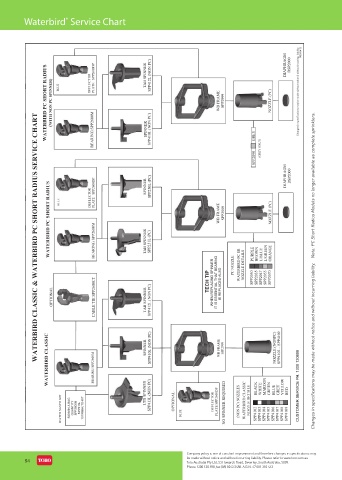

Waterbird Service Chart
®

REV0413

DIAPHRAGM
DSP2000
WATERBIRD PC SHORT RADIUS (WITH NON PC SPINNER) BLUE DEFLECTOR PLATE SPP2600DP TAB SPINNER SPP412L (NON PC) WB FRAME SPP2999 NOZZLE (PC) Changes in specifications may be made without notice & without incurring liability.

WATERBIRD CLASSIC & WATERBIRD PC SHORT RADIUS SERVICE CHART

BEARING SPP2600M SPINNER SPP410L (NON PC) GREY (GREY ONLY)
SPP2090 DIAPHRAGM DSP2000

SPP250L (PC)
SPINNER
WATERBIRD PC SHORT RADIUS WATERBIRD PC SHORT RADIUS BLUE DEFLECTOR PLATE SPP2600DP BEARING SPP2600M TAB SPINNER SPP251L (PC) WB FRAME SPP2999 PURPLE BROWN L/BLUE L/GREEN NOZZLE (PC) ORANGE

OPTIONAL CABLE TIE SPP2600CT TAB SPINNER SPP412L (NON PC) TECH TIP WHEN REPLACING SPINNER IT IS ESSENTIAL THAT BEARING IS REPLACED ALSO PC NOZZLE WATERBIRD PC SR NOZZLE DETAILS SPP2030 SPP2035 SPP2047 SPP2055 SPP2070 Changes in specifications may be made without notice and without incurring liability. Note: PC Short Radius Models no longer available as complete sprinklers.

WATERBIRD CLASSIC BEARING SPP2600M SPINNER SPP410L (NON PC) WB FRAME SPP2999 NOZZLE (NONPC) SPP4102 – SPP4109

LTD SPINNER SPP413L (NON PC) WATERBIRD CLASSIC NOZZLE DETAILS BLACK WHITE MAROON GREEN BLUE GREY YELLOW RED CUSTOMER SERVICE PH. 1300 130898
WATER SAVER KIT 500 MIN A BAG QUANTITY SPP2600M SPP413L 101WB6-LTD-KIT OPTIONAL BLUE DEFLECTOR PLATE SPP2600DP NO SPINNER REQUIRED (NON PC) NOZZLES SPP4102 SPP4103 SPP4104 SPP4105 SPP4106 SPP4107 SPP4108 SPP4109

Company policy is one of constant improvement and therefore changes in specifications may
be made without notice and without incurring liability. Please refer to www.toro.com.au
