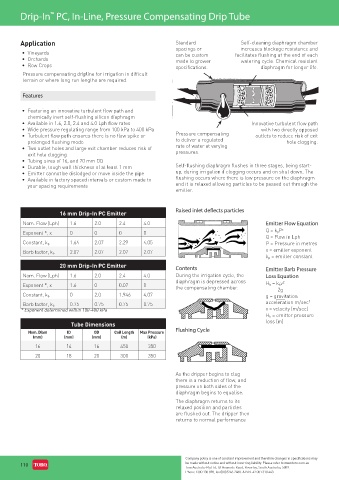

Page 120 - Toro Irrigation Product Catalogue August 2020

Drip-In PC, In-Line, Pressure Compensating Drip Tube
™

Application Standard Self-cleaning diaphragm chamber
spacings or increases blockage resistance and
• Vineyards can be custom facilitates flushing at the end of each
• Orchards made to grower watering cycle. Chemical resistant
• Row Crops specifications. diaphragm for longer life.
Pressure compensating dripline for irrigation in difficult
terrain or where long run lengths are required.

Features

• Featuring an innovative turbulent flow path and
chemically inert self-flushing silicon diaphragm
• Available in 1.6, 2.0, 2.4 and 4.0 Lph flow rates Innovative turbulent flow path
• Wide pressure regulating range from 100 kPa to 400 kPa with two directly opposed
• Turbulent flow path ensures there is no flow spike or Pressure compensating outlets to reduce risk of exit
prolonged flushing mode to deliver a regulated hole clogging.
• Two outlet holes and large exit chamber reduces risk of rate of water at varying
exit hole clogging pressures.
• Tubing sizes of 16, and 20 mm OD
• Durable, tough wall thickness of at least 1 mm Self-flushing diaphragm flushes in three stages, being start-
• Emitter cannot be dislodged or move inside the pipe up, during irrigation if clogging occurs and on shut down. The
• Available in factory spaced intervals or custom made to flushing occurs where there is low pressure on the diaphragm
your spacing requirements and it is relaxed allowing particles to be passed out through the
emitter.

Raised inlet deflects particles
16 mm Drip-In PC Emitter
Nom. Flow (Lph) 1.6 2.0 2.4 4.0 Emitter Flow Equation
Q = k pP x
Exponent *, x 0 0 0 0
Q = Flow in Lph
1.64 2.07 2.29 4.05
Constant, k p P = Pressure in metres
2.07 2.07 2.07 2.07 x = emitter exponent
Barb factor, k b
k p = emitter constant
20 mm Drip-In PC Emitter Contents Emitter Barb Pressure
Nom. Flow (Lph) 1.6 2.0 2.4 4.0 During the irrigation cycle, the Loss Equation
diaphragm is depressed across 2
Exponent *, x 1.6 0 0.07 0 the compensating chamber. H b = k bv
2g
0 2.0 1.946 4.07
Constant, k p g = gravitation
0.75 0.75 0.75 0.75 acceleration m/sec²
Barb factor, k b
* Exponent determined within 100-400 kPa v = velocity (m/sec)
H b = emitter pressure
Tube Dimensions loss (m)
Nom. Diam ID OD Coil Length Max Pressure Flushing Cycle
(mm) (mm) (mm) (m) (kPa)
16 14 16 450 350
20 18 20 300 350

As the dripper begins to clog
there is a reduction of flow, and
pressure on both sides of the
diaphragm begins to equalise.
The diaphragm returns to its
relaxed position and particles
are flushed out. The dripper then
returns to normal performance
